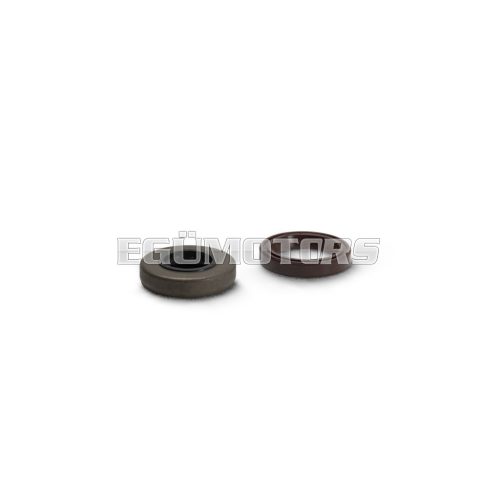

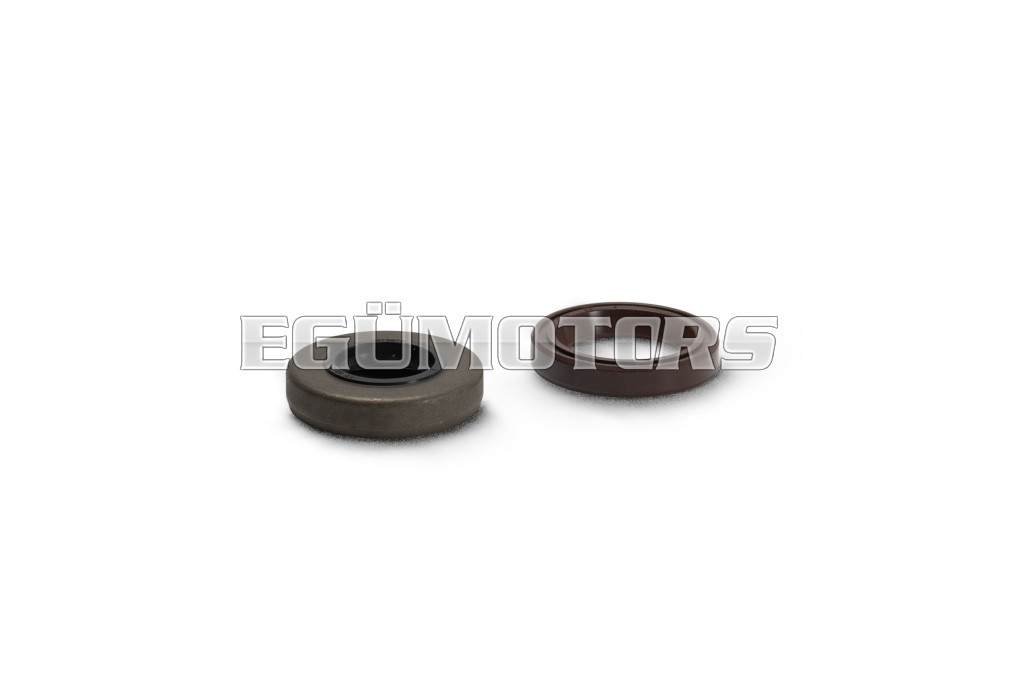

FKM/PTFE oil-seal set for crankshaft for Minarelli - Yamaha 50 cc moto

OIL SEALS

Malossi oil seals are technologically advanced and, despite having been specifically designed for competitions, are also excellent for road use. The oil seal rings, made of the most prestigious of materials used in the area of motor sports that are able to perform even the most severe conditions, are the result of advanced technologies that boast state-of-the-art production standards that are required by Malossi.



Technical specifications

Malossi oil seals include the following design features:

* Being outlined on a case by case basis by our technicians, shapes and profiles are purely indicative and may vary depending on each individual application. The image is included only for illustrative purposes regarding the features Malossi oil seals.

The contact area between the sealing lip and the rotating component that passes through the oil seal hole is the most important and therefore the most protected. The contact between the lip edge and the shaft is guaranteed by the spring and the walls (the membrane and the lip), which ensures that there is interference between the two components that is required for the development of the essential radial force to guarantee an optimal seal. After a brief period of use, the edge of the sealing lip is modified and allows a thin film of fluid to be created between the shaft and the lip which, by preventing direct contact between the two components, facilitates lubrication and prevents oil leakage, exponentially increasing the lifetime of the ring.

The following includes the main features of our oil seals:

1. The main body is made with a special blend of fluorinated elastomer, called FKM, which is one of the most valuable on the market. It has excellent physical properties over a wide range of temperatures (-15°C to +210°C), from a maximum operating speed which can reach 35-40 m/s, and provides infinite immersion resistance in hydrocarbons, a feature that determines the extremely long lifetime of our oil seals
2. Metallic steel insert (reinforcement), in compliance with regulations, which is able to provide the right degree of mechanical strength
3. Stainless steel inner spring that is designed to retain its properties over time



Modellek:

• APRILIA MX 50 2T LC (MINARELLI AM 6)
• APRILIA RS 50 2T LC (MINARELLI AM 3 > 6)
• APRILIA TUONO 50 2T LC (MINARELLI AM 6)
• BETA RR ENDURO 50 2T LC (MINARELLI AM 6)
• BETA RR ENDURO RACING 50 2T LC (MINARELLI AM 6)
• BETA RR ENDURO 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• BETA RR ENDURO 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• BETA RR ENDURO RACING 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• BETA RR ENDURO RACING 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• BETA RR ENDURO SPORT 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• BETA RR ENDURO SPORT 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• BETA RR MOTARD 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• BETA RR MOTARD 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• BETA RR MOTARD SPORT 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• BETA RR MOTARD SPORT 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• BETA RR MOTARD TRACK 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• BETA RR MOTARD TRACK 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• BETA RR SUPERMOTARD 50 2T LC (MINARELLI AM 6)
• BETA RR SUPERMOTARD ALU 50 2T LC (MINARELLI AM 6)
• FANTIC CABALLERO 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• FANTIC ENDURO CASA 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• FANTIC ENDURO XEF COMPETITION 50 2T LC euro 5 2021-> (MINARELLI AM6 95D)
• FANTIC ENDURO PERFORMANCE 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• FANTIC ENDURO XE PERFORMANCE 50 2T LC euro 5 2021-> (MINARELLI AM6 95D)
• FANTIC MOTARD CASA 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• FANTIC MOTARD XMF COMPETITION 50 2T LC euro 5 2021-> (MINARELLI AM6 95D)
• FANTIC MOTARD PERFORMANCE 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• FANTIC MOTARD XM PERFORMANCE 50 2T LC euro 5 2021-> (MINARELLI AM6 95D)
• HM CR E DERAPAGE 50 2T LC (MINARELLI AM 6)
• HM CRE SIX Comp. 50 2T LC 2013-> (MINARELLI AM 6)
• HM DERAPAGE RR 11 50 2T LC (MINARELLI AM 6)
• HUSQVARNA CH RACING 50 2T LC (MINARELLI AM 6)
• MALAGUTI XSM - XTM 50 2T LC (MINARELLI AM 6)
• MBK X-LIMIT 50 2T LC (MINARELLI AM 6)
• MBK X-POWER 50 2T LC (MINARELLI AM 6)
• PEUGEOT XPS 50 2T LC (MINARELLI AM 6)
• PEUGEOT XR6 50 2T LC (MINARELLI AM 6)
• PEUGEOT XR7 50 2T LC (MINARELLI AM 6)
• RIEJU RS2 50 2T LC (MINARELLI AM 6)
• SHERCO HRD 50 2T LC (MINARELLI AM 6)
• SHERCO SE FACTORY R 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SE FACTORY RS 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SM FACTORY R 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SM FACTORY RS 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SM RED ONE R 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SM RED ONE RS 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SM SILVER R 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SM SILVER RS 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• VALENTI N01 50 2T LC euro 5 2022-> (MINARELLI AM6)
• VALENTI RME ENDURO 50 2T LC euro 5 2022-> (MINARELLI AM6)
• VALENTI RME RACE 50 2T LC euro 5 2022-> (MINARELLI AM6)
• VALENTI S01 SCRAMBLER 50 2T LC euro 5 2022-> (MINARELLI AM6)
• VALENTI SM 50 2T LC euro 5 2022-> (MINARELLI AM6)
• VENT BAJA 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• VENT BAJA RR 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• VENT DERAPAGE 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• VENT DERAPAGE 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• VENT DERAPAGE RR 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• VENT DERAPAGE RR 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• YAMAHA DT 50 R 50 2T LC euro 2 (MINARELLI AM 6)
• YAMAHA DT 50 X 50 2T LC euro 2 (MINARELLI AM 6)
• YAMAHA TZR 50 2T LC (MINARELLI AM 6)
