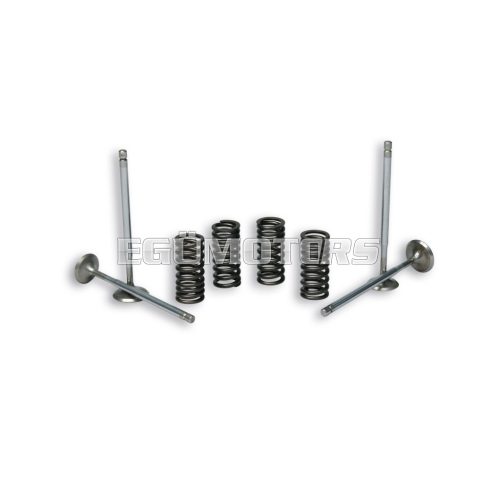

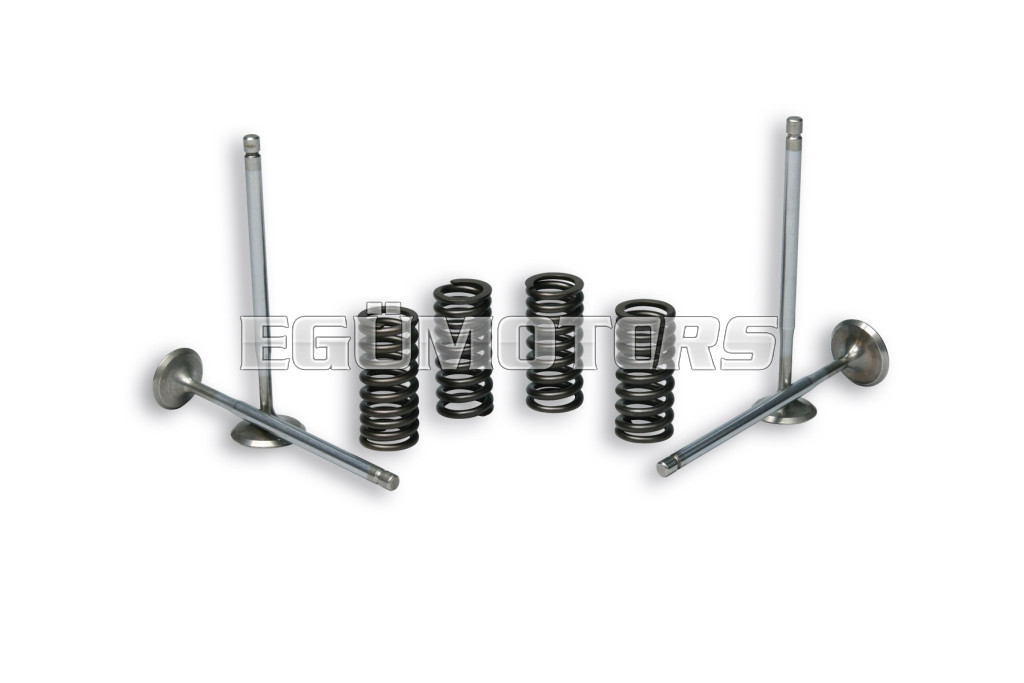

Malossi 4 STROKE VALVE with SPRINGS for ORIGINAL CYLINDER HEAD

A new line of 4-stroke valves was born to complete the whole range of the most spread vehicles in the word. It is a high quality production, designed for both racing and sport use. These valves are manufactured with the best quality materials and with the most advanced manufacturing processes.
As for all Malossi products, these valves are produced only after the strictest tests and all the items have been checking at one hundred percent according to ISO 9001 rules.

TECHNICAL DATA

Intake Valves:

1. Completely re-profiled, to reach the best performances at all r.p.m.
2. Made in special heat-treated steel.
3. Valve shank with hard chrome coating against wearing.
4. Oversized diameter of valve head.
5. Extremely-limited size and shape tolerance.
6. Totally refaced valves.

Ø Stem : 5 mm
Ø Head : 23 mm
Total length : 94.8 mm

Exhaust Valves:

1. Completely re-profiled, to reach the best performances at all r.p.m.
2. Made in special stainless and no-magnetic steel.
3. Valve shank with hard chrome coating against wearing.
4. Oversized diameter of valve head.
5. Extremely-limited size and shape tolerance.
6. Stellite coating on both the seat and head of the valve.
7. Totally refaced valves.

Ø Stem : 5 mm
Ø Head : 20.5 mm
Total length : 95.3 mm

Modellek:

• APRILIA ATLANTIC - Arrecife 125 4T LC
• APRILIA ATLANTIC - Arrecife 200 4T LC (PIAGGIO M234M)
• APRILIA ATLANTIC - Arrecife 250 4T LC (PIAGGIO M237M)
• APRILIA ATLANTIC S 300 ie 4T LC euro 3 (PIAGGIO)
• APRILIA SCARABEO 125 4T LC (PIAGGIO)
• APRILIA SCARABEO 250 4T LC (PIAGGIO M285M)
• APRILIA SCARABEO Light 250 ie 4T LC 2007->
• APRILIA SCARABEO Special 300 ie 4T LC euro 3 (PIAGGIO M28RM)
• APRILIA SPORTCITY 125 4T LC euro 2 (PIAGGIO M281M)
• APRILIA SPORTCITY 200 4T LC euro 3 (PIAGGIO)
• APRILIA SPORTCITY 250 ie 4T LC euro 3 (PIAGGIO M288M)
• APRILIA SPORTCITY CUBE 300 ie 4T LC euro 3 (LEADER M28LM)
• APRILIA SR MAX 300 ie 4T LC euro 3
• BENELLI ADIVA AD 250 4T LC euro 2
• DERBI GP1 125 4T LC euro 2-3
• DERBI GP1 250 4T LC euro 2-3
• DERBI RAMBLA 125 4T LC euro 3 (PIAGGIO M287M)
• DERBI RAMBLA 250 ie 4T LC euro 3
• DERBI RAMBLA i 300 ie 4T LC euro 3 (PIAGGIO)
• GILERA DNA 125 4T LC
• GILERA DNA 180 4T LC
• GILERA NEXUS 125 4T LC euro 3 2007->2008 (M355M)
• GILERA NEXUS 250 ie 4T LC euro 3
• GILERA NEXUS 300 ie 4T LC euro 3
• GILERA RUNNER ST 125 4T LC euro 3
• GILERA RUNNER ST 200 4T LC euro 3
• GILERA RUNNER VX 125 4T LC 2006->
• GILERA RUNNER VX 125 4T LC <-2005
• GILERA RUNNER VXR 180 4T LC
• GILERA RUNNER VXR 200 4T LC <-2005
• GILERA RUNNER VXR 200 4T LC 2006->
• MALAGUTI PHANTOM MAX 200 4T LC (PIAGGIO)
• MALAGUTI MADISON 180 4T LC (PIAGGIO)
• MALAGUTI MADISON 200 4T LC (PIAGGIO)
• MALAGUTI MADISON RS 250 4T LC (PIAGGIO M237M)
• MALAGUTI MADISON 3 125 4T LC (PIAGGIO)
• MALAGUTI MADISON 3 250 4T LC (PIAGGIO)
• MALAGUTI PHANTOM MAX 250 4T LC (PIAGGIO M361M)
• PEUGEOT GEOPOLIS 250 ie 4T LC euro 3
• PEUGEOT GEOPOLIS R/GT 300 ie 4T LC euro 3
• PEUGEOT GeoRS 300 ie 4T LC euro 3 (PIAGGIO M28MM)
• PEUGEOT SATELIS 250 4T LC euro 3
• PIAGGIO BEVERLY 125 4T LC <-2009
• PIAGGIO BEVERLY 200 4T LC
• PIAGGIO BEVERLY 250 4T LC euro 1-2 (M285M)
• PIAGGIO BEVERLY S 250 ie 4T LC euro 3
• PIAGGIO BEVERLY 300 ie 4T LC euro 3 <-2009 (M28MM)
• PIAGGIO BEVERLY 300 ie 4T LC euro 3 2010->2016 (M692M)
• PIAGGIO BEVERLY 300 ie 4T LC euro 4 2017->2020 (MA21M)
• PIAGGIO BEVERLY TOURER 300 ie 4T LC euro 3
• PIAGGIO BEVERLY 250 ie 4T LC euro 3
• PIAGGIO CARNABY 125 4T LC euro 3 (LEADER M28FM)
• PIAGGIO CARNABY 200 4T LC euro 3 (LEADER M601M)
• PIAGGIO CARNABY 300 ie 4T LC euro 3 (QUASAR)
• PIAGGIO SUPER HEXAGON GTX 125 4T LC
• PIAGGIO SUPER HEXAGON GTX 180 4T LC
• PIAGGIO MP3 300 ie 4T LC euro 4 2016->2018 (TA11M)
• PIAGGIO MP3 125 4T LC euro 3 (LEADER)
• PIAGGIO MP3 250 ie 4T LC euro 3 (QUASAR M472M)
• PIAGGIO MP3 300 ie 4T LC euro 3 2009->2014 (QUASAR M634M)
• PIAGGIO MP3 300 ie 4T LC euro 3 2014->2016 (M862M)
• PIAGGIO MP3 YOURBAN 4V 300 ie 4T LC euro 3 2011->2016
• PIAGGIO MP3 YOURBAN SPORT 4V 300 ie 4T LC euro 4 2017->2018
• PIAGGIO X7 125 4T LC euro 3 (LEADER)
• PIAGGIO X7 EVO 125 ie 4T LC euro 3 2009->2010 (QUASAR M623M)
• PIAGGIO X7 250 ie 4T LC euro 3 (QUASAR M622M)
• PIAGGIO X7 EVO 300 ie 4T LC euro 3 (QUASAR)
• PIAGGIO X8 125 4T LC euro 2-3 (LEADER)
• PIAGGIO X8 200 4T LC
• PIAGGIO X8 250 4T LC euro 2
• PIAGGIO X8 250 ie 4T LC euro 3 (QUASAR)
• PIAGGIO X9 4V 125 4T LC
• PIAGGIO X9 4V Evolution 125 4T LC euro 2-3
• PIAGGIO X9 AMALFI 180 4T LC
• PIAGGIO X9 200 4T LC
• PIAGGIO X9 Evolution 250 4T LC (M237M)
• PIAGGIO XEvo 125 4T LC euro 3 (LEADER)
• PIAGGIO XEvo 250 ie 4T LC euro 3 (QUASAR)
• ROYAL ALLOY GP 300 LC
• VESPA SEI GIORNI 300 ie 4T LC euro 4 2018->
• VESPA Granturismo L - GT 125 4T LC (LEADER)
• VESPA GTV 125 4T LC (LEADER)
• VESPA Granturismo L - GT 200 4T LC (M312M)
• VESPA GTS 125 4T LC euro 3 <-2013 (M315M)
• VESPA GTS Super 125 ie 4T LC euro 3 2014->2016 (M455M)
• VESPA GTS Super 125 ie 4T LC euro 3 <-2013 (M455M)
• VESPA GTS 250 ie 4T LC
• VESPA GTV 250 ie 4T LC
• VESPA GTS Super 300 ie 4T LC euro 3 <-2013 (QUASAR M454M)
• VESPA GTS Super 300 ie 4T LC euro 3 2014->2016 (QUASAR M454M)
• VESPA GTS Super 300 ie 4T LC euro 4 2017->2018 (QUASAR M458M-M45EM)
• VESPA GTS 300 ie 4T LC euro 4 2017->2018 (MA33M)
• VESPA GTV 300 ie 4T LC euro 3 (QUASAR)
