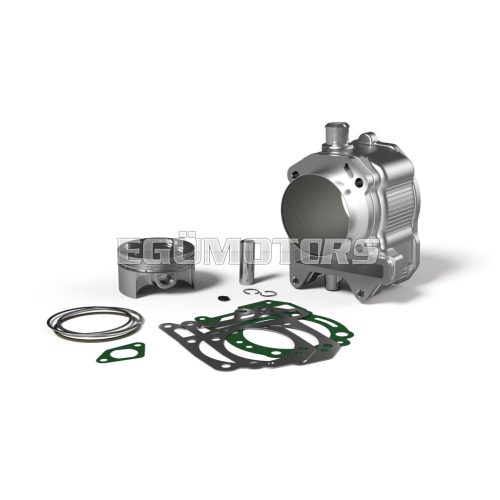

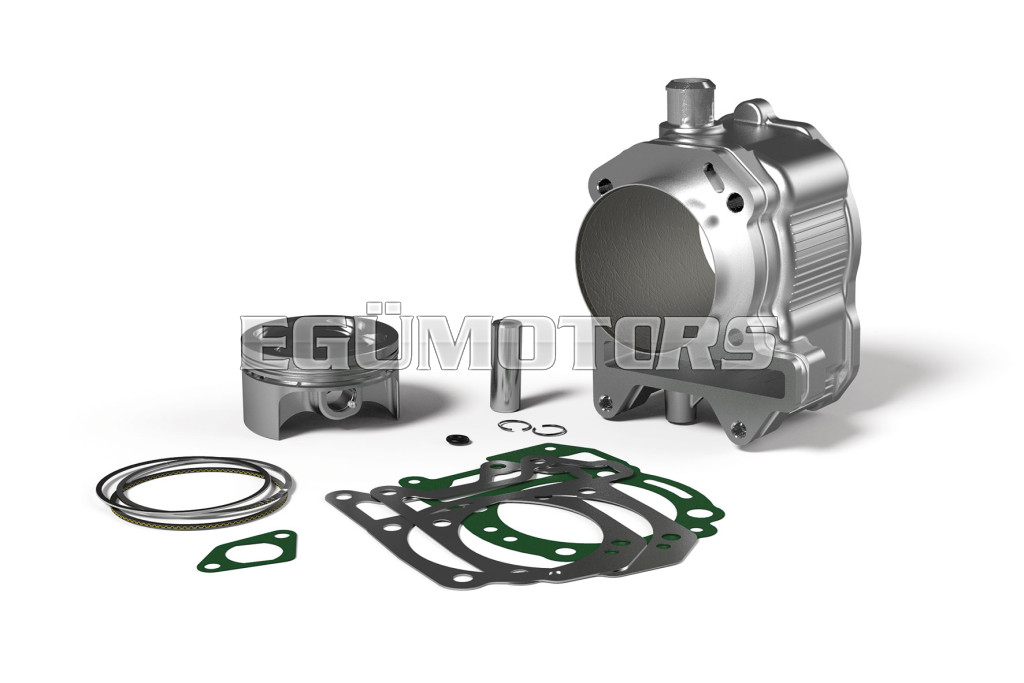

Malossi ALUM-COMPL.CYL. 75,5 pin 15 H2O 4-stroke

COMPLETE CYLINDER 4-STROKE

TECHNICAL FEATURES

Cylinder

• Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances.
• Machining: on machine tools with high precision numerical control.
• Cylinder-piston connection with an allowance of 0.05 mm.
• Recalculated and upgraded heat exchange surfaces.

Piston

• Ultra compact with 3 rings.
• Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.
• Machining on machine tools with numerical control.
• Lightened and reinforced.
• Upgraded heat exchange surfaces.

Piston rings

• Compression - special rings with high sliding ease and very high mechanical resistance, in chromium-plated S10 spheroidal cast-iron.
• 1st scraper - ring in chromium-plated S10 spheroidal cast iron.
• 2nd three - piece scraper ring made of chromium-plated steel alloy.



Modellek:

• APRILIA ATLANTIC - Arrecife 250 4T LC (PIAGGIO M237M)
• APRILIA SCARABEO 250 4T LC (PIAGGIO M285M)
• APRILIA SCARABEO Light 250 ie 4T LC 2007->
• APRILIA SPORTCITY 250 ie 4T LC euro 3 (PIAGGIO M288M)
• BENELLI ADIVA AD 250 4T LC euro 2
• DERBI GP1 250 4T LC euro 2-3
• DERBI RAMBLA 250 ie 4T LC euro 3
• GILERA NEXUS 250 ie 4T LC euro 3
• MALAGUTI MADISON RS 250 4T LC (PIAGGIO M237M)
• MALAGUTI MADISON 3 250 4T LC (PIAGGIO)
• MALAGUTI PHANTOM MAX 250 4T LC (PIAGGIO M361M)
• PEUGEOT GEOPOLIS 250 ie 4T LC euro 3
• PEUGEOT SATELIS 250 4T LC euro 3
• PIAGGIO BEVERLY 250 4T LC euro 1-2 (M285M)
• PIAGGIO BEVERLY S 250 ie 4T LC euro 3
• PIAGGIO BEVERLY 250 ie 4T LC euro 3
• PIAGGIO MP3 250 ie 4T LC euro 3 (QUASAR M472M)
• PIAGGIO X7 250 ie 4T LC euro 3 (QUASAR M622M)
• PIAGGIO X8 250 4T LC euro 2
• PIAGGIO X8 250 ie 4T LC euro 3 (QUASAR)
• PIAGGIO X9 Evolution 250 4T LC (M237M)
• PIAGGIO XEvo 250 ie 4T LC euro 3 (QUASAR)
• VESPA GTS 250 ie 4T LC
• VESPA GTV 250 ie 4T LC
