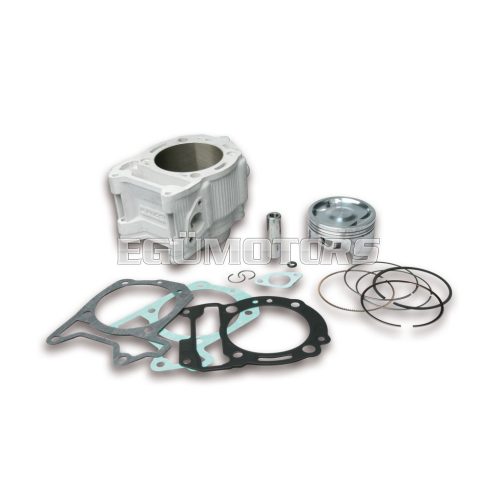

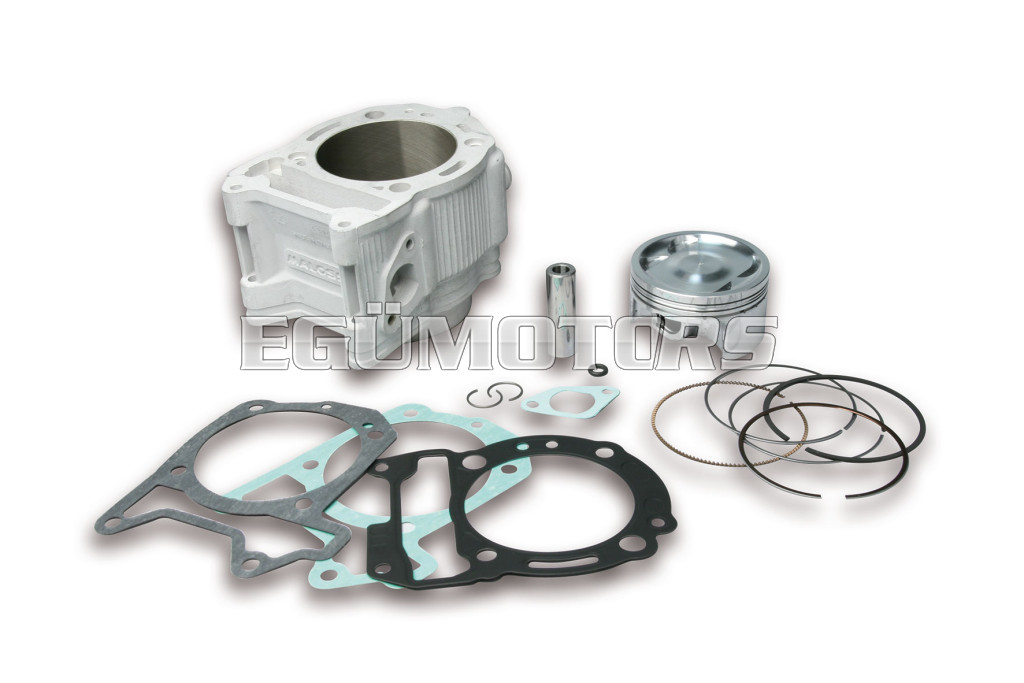

Malossi ALUM-COMPL.CYL. 75,5 pin 16 I-TECH 4-stroke

Aluminium complete cylinder I-TECH 4 Stroke
Ø 75,5 pin Ø 16 H2O

Cylinder

• Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances
• Machining: on machine tools with high precision numerical control
• Cylinder-piston connection with an allowance of 0.05 mm
• Recalculated and upgraded heat exchange surfaces

Piston

• Ultra compact with 3 rings
• Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces
• Machining on machine tools with numerical control
• Lightened and reinforced
• Upgraded heat exchange surfaces

Piston rings

• Special rings with high sliding ease and very high mechanical resistance
• I° ring compression in nitrided and chromium steel
• II° special cast iron ring
• Three piece scraper ring made of chromiumplated special steel alloy





Modellek:

• PIAGGIO BEVERLY HPE 300 ie 4T LC euro 5 2021-> (MD21M)
• PIAGGIO MP3 HPE Sport 300 ie 4T LC euro 5 2021-> (TD21M)
• PIAGGIO MP3 HPE 300 ie 4T LC euro 5 2021-> (TD21M)
• VESPA GTS Super RACING SIXTIES HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
• VESPA GTS Super HPE 300 ie 4T LC euro 4 2019->2020 (MA36M)
• VESPA GTS Super HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
• VESPA GTS Super Sport HPE 300 ie 4T LC euro 4 2019->2020 (MA36M)
• VESPA GTS Super Sport HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
• VESPA GTS Super Tech HPE 300 ie 4T LC euro 4 2019->2020 (MA36M)
• VESPA GTS Super Tech HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
• VESPA GTS Touring HPE 300 ie 4T LC euro 4 2019->2020 (MA36M)
• VESPA GTS Touring HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
• VESPA SEI GIORNI HPE 300 ie 4T LC euro 4 2019->2020 (MA36M)
• VESPA SEI GIORNI HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
• VESPA SEI GIORNI II EDITION HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
• VESPA GTS HPE 300 ie 4T LC euro 4 2019->2020 (MA36M)
• VESPA GTS HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
• VESPA GTS HPE 300 ie 4T LC euro 5 2023-> (MD31M)
• VESPA GTS Super HPE 300 ie 4T LC euro 5 2023-> (MD31M)
• VESPA GTS Super Sport HPE 300 ie 4T LC euro 5 2023->
• VESPA GTS Super Tech HPE 300 ie 4T LC euro 5 2023->
• VESPA GTV HPE 300 ie 4T LC euro 5 2023->
