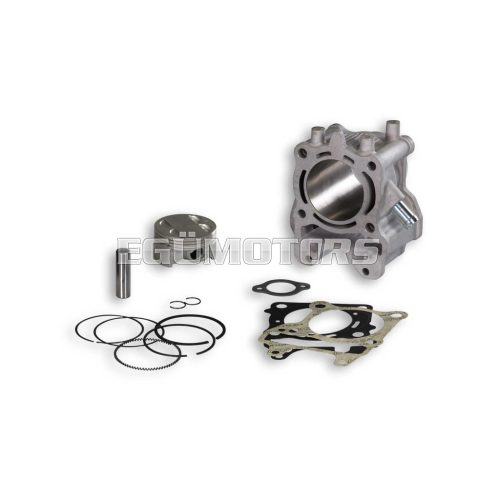

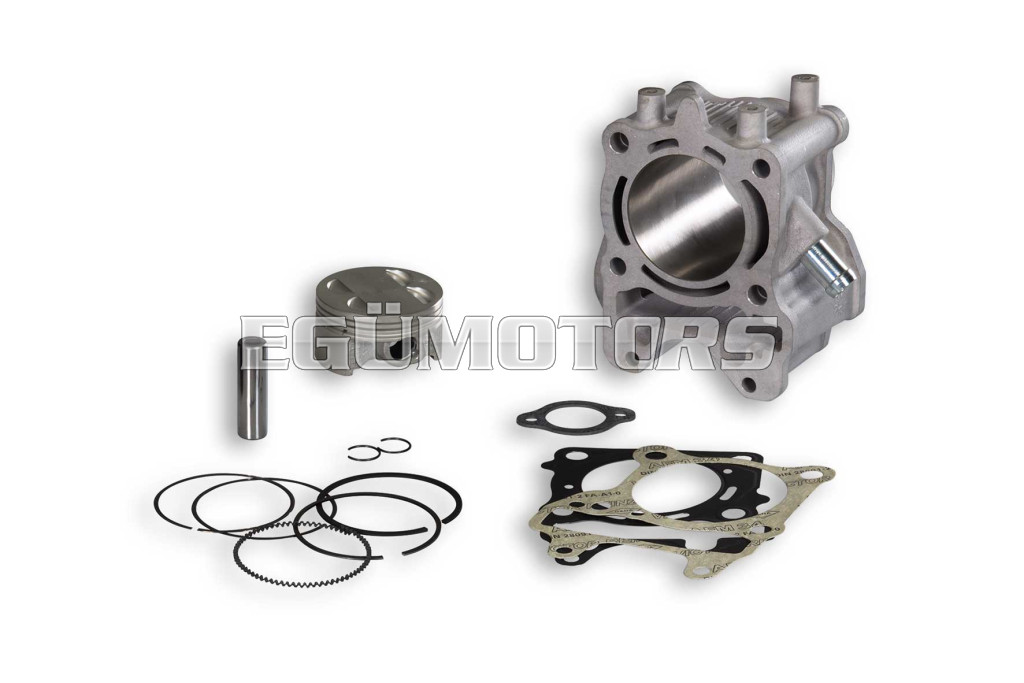

Malossi ALUM-CYL. 61 pin 14 H2O 4-stroke

Cylinder

• Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances.
• Machining: on machine tools with high precision numerical control.
• Cylinder-piston connection with an allowance of 0.05 mm.
• Recalculated and upgraded heat exchange surfaces.

Piston

• Ultra compact with 3 rings.
• Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.
• Machining on machine tools with numerical control.
• Lightened and reinforced.
• Upgraded heat exchange surfaces.

Piston rings

• Special rings with high sliding ease and very high mechanical resistance.
• I° ring compression in nitrided and chromium steel.
• II° special cast iron ring.
• Three piece scraper ring made of chromiumplated special steel alloy.

Modellek:

• HONDA FORZA 125 ie 4T LC euro 3 <-2016 (JF60E) (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5519814)
• HONDA FORZA 125 ie 4T LC euro 4 2017->2020 (JF69E) (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5519814)
