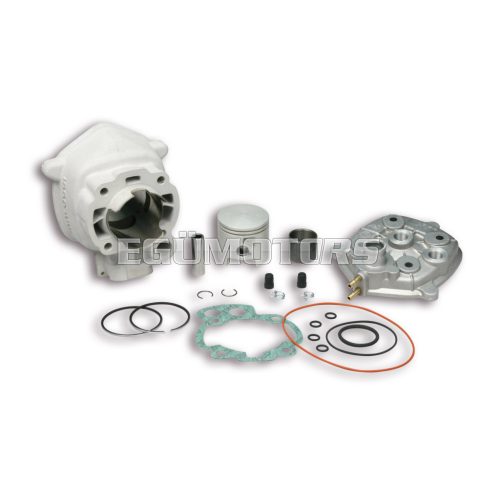

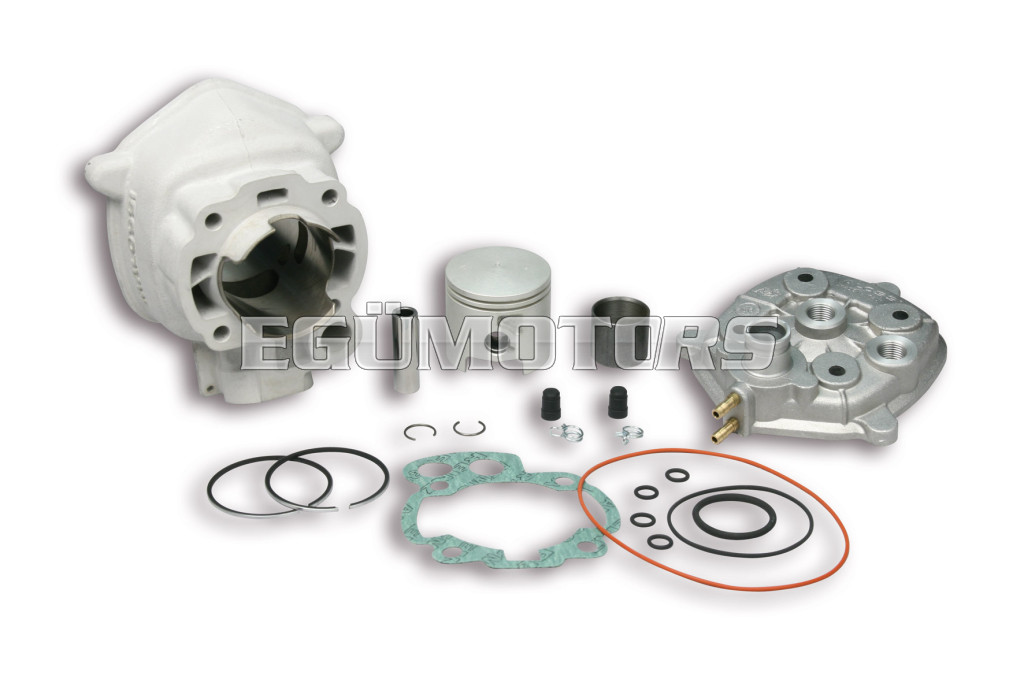

MHR REPLICA CYLINDER KIT
The MHR Replica line of cylinder was created especially for the
International Scooter Trophy - 70cc Automatic Class.
These cylinder kits
were designed to guarantee maximum performance in this category, while at
the same time assuring extremely long product life.
In order to guarantee these special characteristics, Malossi MHR Replica
cylinder kit have pistons with two chrome-plated rectangular segmants and
a compression ratio of 13.8:1, plus torque value of 7.35 N.m. (o.75 Kgm)
at 8.000 rpm and power of 6.6 Kw (9 C.V.) at 8.500 rpm.
The MHR line is the results of Malossi's many years of experience in
European and National competitions.
These new cylinder kits are composed
principally of cylinder - piston - ring - head.
Technical data
- Material: alluminium
- Cooling: liquid
- Bore: 50 mm
- Stroke: 39 mm
- Capacity 77
- Compression ratio: 13,8:1
- Timing system : 5 ports
- Spark plugs:
- IRIDIUM IW 34: art. 6314455.S0 (MHR)
- IRIDIUM IW 27: art. 6314455.L0 (SPORT)
Modellek:
- APRILIA MX 50 2T LC (MINARELLI AM 6)
- APRILIA RS 50 2T LC (MINARELLI AM 3 > 6)
- APRILIA TUONO 50 2T LC (MINARELLI AM 6)
- BETA RR ENDURO 50 2T LC (MINARELLI AM 6)
- BETA RR ENDURO RACING 50 2T LC (MINARELLI AM 6)
- BETA RR ENDURO 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
- BETA RR ENDURO 50 2T LC euro 5 2021-> (MINARELLI AM 6)
- BETA RR ENDURO RACING 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
- BETA RR ENDURO RACING 50 2T LC euro 5 2021-> (MINARELLI AM 6)
- BETA RR ENDURO SPORT 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
- BETA RR ENDURO SPORT 50 2T LC euro 5 2021-> (MINARELLI AM 6)
- BETA RR MOTARD 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
- BETA RR MOTARD 50 2T LC euro 5 2021-> (MINARELLI AM 6)
- BETA RR MOTARD SPORT 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
- BETA RR MOTARD SPORT 50 2T LC euro 5 2021-> (MINARELLI AM 6)
- BETA RR MOTARD TRACK 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
- BETA RR MOTARD TRACK 50 2T LC euro 5 2021-> (MINARELLI AM 6)
- BETA RR SUPERMOTARD 50 2T LC (MINARELLI AM 6)
- BETA RR SUPERMOTARD ALU 50 2T LC (MINARELLI AM 6)
- FANTIC CABALLERO 50 2T LC euro 4 2019-> (MINARELLI AM 6)
- FANTIC ENDURO CASA 50 2T LC euro 4 2019-> (MINARELLI AM 6)
- FANTIC ENDURO XEF COMPETITION 50 2T LC euro 5 2021-> (MINARELLI AM6 95D)
- FANTIC ENDURO PERFORMANCE 50 2T LC euro 4 2019-> (MINARELLI AM 6)
- FANTIC ENDURO XE PERFORMANCE 50 2T LC euro 5 2021-> (MINARELLI AM6 95D)
- FANTIC MOTARD CASA 50 2T LC euro 4 2019-> (MINARELLI AM 6)
- FANTIC MOTARD XMF COMPETITION 50 2T LC euro 5 2021-> (MINARELLI AM6 95D)
- FANTIC MOTARD PERFORMANCE 50 2T LC euro 4 2019-> (MINARELLI AM 6)
- FANTIC MOTARD XM PERFORMANCE 50 2T LC euro 5 2021-> (MINARELLI AM6 95D)
- HM CR E DERAPAGE 50 2T LC (MINARELLI AM 6)
- HM CRE SIX Comp. 50 2T LC 2013-> (MINARELLI AM 6)
- HM DERAPAGE RR 11 50 2T LC (MINARELLI AM 6)
- HUSQVARNA CH RACING 50 2T LC (MINARELLI AM 6)
- MALAGUTI XSM - XTM 50 2T LC (MINARELLI AM 6)
- MBK X-LIMIT 50 2T LC (MINARELLI AM 6)
- MBK X-POWER 50 2T LC (MINARELLI AM 6)
- PEUGEOT XPS 50 2T LC (MINARELLI AM 6)
- PEUGEOT XR6 50 2T LC (MINARELLI AM 6)
- PEUGEOT XR7 50 2T LC (MINARELLI AM 6)
- RIEJU RS2 50 2T LC (MINARELLI AM 6)
- SHERCO HRD 50 2T LC (MINARELLI AM 6)
- SHERCO SE FACTORY R 50 2T LC euro 5 2021-> (MINARELLI AM 6)
- SHERCO SE FACTORY RS 50 2T LC euro 5 2021-> (MINARELLI AM 6)
- SHERCO SM FACTORY R 50 2T LC euro 5 2021-> (MINARELLI AM 6)
- SHERCO SM FACTORY RS 50 2T LC euro 5 2021-> (MINARELLI AM 6)
- SHERCO SM RED ONE R 50 2T LC euro 5 2021-> (MINARELLI AM 6)
- SHERCO SM RED ONE RS 50 2T LC euro 5 2021-> (MINARELLI AM 6)
- SHERCO SM SILVER R 50 2T LC euro 5 2021-> (MINARELLI AM 6)
- SHERCO SM SILVER RS 50 2T LC euro 5 2021-> (MINARELLI AM 6)
- VALENTI N01 50 2T LC euro 5 2022-> (MINARELLI AM6)
- VALENTI RME ENDURO 50 2T LC euro 5 2022-> (MINARELLI AM6)
- VALENTI RME RACE 50 2T LC euro 5 2022-> (MINARELLI AM6)
- VALENTI S01 SCRAMBLER 50 2T LC euro 5 2022-> (MINARELLI AM6)
- VALENTI SM 50 2T LC euro 5 2022-> (MINARELLI AM6)
- VENT BAJA 50 2T LC euro 4 2019-> (MINARELLI AM 6)
- VENT BAJA RR 50 2T LC euro 4 2019-> (MINARELLI AM 6)
- VENT DERAPAGE 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
- VENT DERAPAGE 50 2T LC euro 5 2021-> (MINARELLI AM 6)
- VENT DERAPAGE RR 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
- VENT DERAPAGE RR 50 2T LC euro 5 2021-> (MINARELLI AM 6)
- YAMAHA DT 50 R 50 2T LC euro 2 (MINARELLI AM 6)
- YAMAHA DT 50 X 50 2T LC euro 2 (MINARELLI AM 6)
- YAMAHA TZR 50 2T LC (MINARELLI AM 6)
