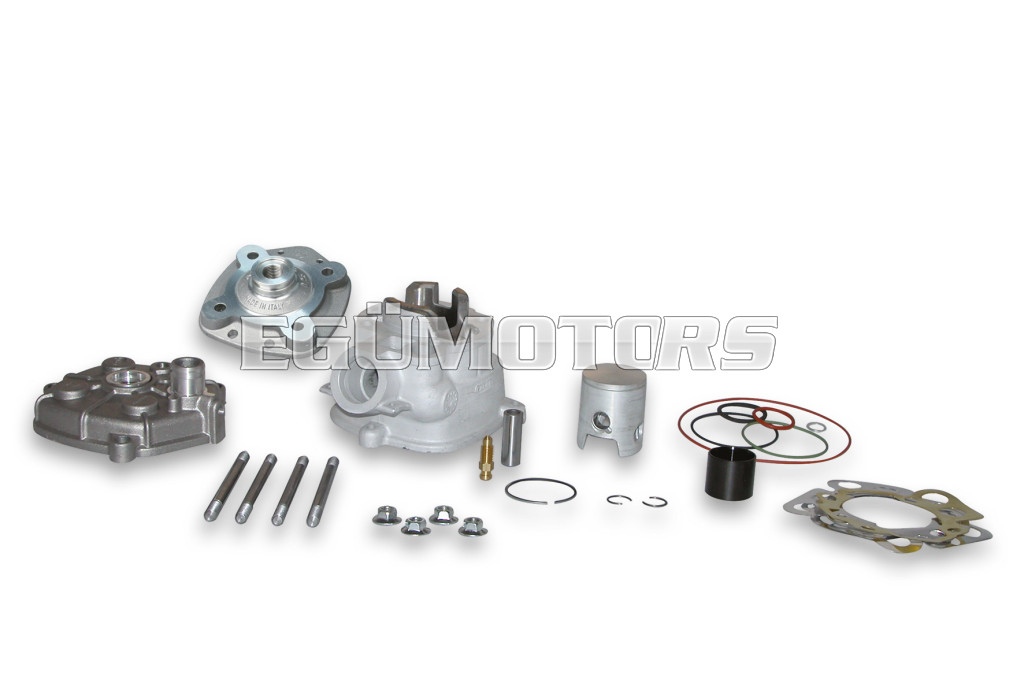

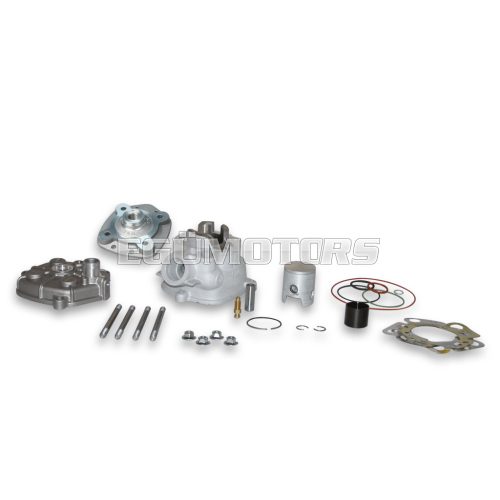

Malossi ALUMIN-CYL. KIT 40,3 H2O MHR TEAM mod-head

CYLINDER KIT MHR modular head

The new MHR MODULAR-HEAD CYLINDER KITS are the natural evolution of the MHR MALOSSI line. The result of the research of its engineers, they have been a decisive factor in the victories of the official national and European teams in the cross and speed trophies. Malossi is happy to be able to guarantee that all riders taking part in the coming season National and European Trophies will have a product offering excellent quality and performance.

CYLINDER

• Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures.
• Heat treatment: special quenching and stabilising treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C.
• Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity).
• Inner surface coating: effected using silicon carbide on a nickel matrix with heat treatment that guarantees extreme hardness (around 600 HV0, 1/5) and excellent resistance to wear.
• Internal machining of cylinder: using special machines that allow a degree of finish on the cylinder barrel walls whose roughness corresponds with the angles set at the design stage (grinding process using special stone).
• Port and exhaust diagrams: designed and manufactured especially for racing. The definition of the port and exhaust diagrams has requested considerable effort on the part of our engineers both on engine test stands and the circuits on which the trophy is held.

PISTON

• Material: special aluminium alloy with a very high percentage of silicon and titanium that guarantees both excellent heat resistance and strain strength upon temperature variation.
• External coating: graphite coating that guarantees a very low friction coefficient.
• Structure: reinforced in order to offer resistance to the stress suffered by cylinder units used for top-level competition, but at the same time light enough to reduce inertial force.

PISTON RING

• Ring in very strong modular cast iron with ground, wear-resistant, hard chrome metal-spray coating on the contact surface.

HEAD

The new Malossi modular head has been specially created to guarantee elimination of the notable amount of heat that develops in an engine with a very high specific horsepower designed for racing.
It consists of a head in special hardened and tempered aluminium alloy with high silicon content that is fixed directly to the cylinder barrel. It is lapped over its entire outer surface by the coolant thus guaranteeing a very large heat-exchange surface. In addition, being unattached to the internal walls it is free to follow the expansion of the cylinder.
The combustion chamber is entirely manufactured using numerical control machines in order to ensure shape and size tolerances to within just one hundredth of a millimetre.
The modular head system is completed by a cover that closes off the upper part of the cylinder, thus guaranteeing that the coolant is fully sealed.
The geometry and cross-section of the combustion chamber for this cylinder unit have been specially designed for use in the Scooter Speed Trophy and Scooter Cross Trophy.

Modellek:

• APRILIA MX 50 2T LC (MINARELLI AM 6)
• APRILIA RS 50 2T LC (MINARELLI AM 3 > 6)
• APRILIA TUONO 50 2T LC (MINARELLI AM 6)
• BETA RR ENDURO 50 2T LC (MINARELLI AM 6)
• BETA RR ENDURO RACING 50 2T LC (MINARELLI AM 6)
• BETA RR ENDURO 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• BETA RR ENDURO 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• BETA RR ENDURO RACING 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• BETA RR ENDURO RACING 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• BETA RR ENDURO SPORT 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• BETA RR ENDURO SPORT 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• BETA RR MOTARD 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• BETA RR MOTARD 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• BETA RR MOTARD SPORT 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• BETA RR MOTARD SPORT 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• BETA RR MOTARD TRACK 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• BETA RR MOTARD TRACK 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• BETA RR SUPERMOTARD 50 2T LC (MINARELLI AM 6)
• BETA RR SUPERMOTARD ALU 50 2T LC (MINARELLI AM 6)
• FANTIC CABALLERO 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• FANTIC ENDURO CASA 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• FANTIC ENDURO XEF COMPETITION 50 2T LC euro 5 2021-> (MINARELLI AM6 95D)
• FANTIC ENDURO PERFORMANCE 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• FANTIC ENDURO XE PERFORMANCE 50 2T LC euro 5 2021-> (MINARELLI AM6 95D)
• FANTIC MOTARD CASA 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• FANTIC MOTARD XMF COMPETITION 50 2T LC euro 5 2021-> (MINARELLI AM6 95D)
• FANTIC MOTARD PERFORMANCE 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• FANTIC MOTARD XM PERFORMANCE 50 2T LC euro 5 2021-> (MINARELLI AM6 95D)
• HM CR E DERAPAGE 50 2T LC (MINARELLI AM 6)
• HM CRE SIX Comp. 50 2T LC 2013-> (MINARELLI AM 6)
• HM DERAPAGE RR 11 50 2T LC (MINARELLI AM 6)
• HUSQVARNA CH RACING 50 2T LC (MINARELLI AM 6)
• MALAGUTI XSM - XTM 50 2T LC (MINARELLI AM 6)
• MBK X-LIMIT 50 2T LC (MINARELLI AM 6)
• MBK X-POWER 50 2T LC (MINARELLI AM 6)
• PEUGEOT XPS 50 2T LC (MINARELLI AM 6)
• PEUGEOT XR6 50 2T LC (MINARELLI AM 6)
• PEUGEOT XR7 50 2T LC (MINARELLI AM 6)
• RIEJU RS2 50 2T LC (MINARELLI AM 6)
• SHERCO HRD 50 2T LC (MINARELLI AM 6)
• SHERCO SE FACTORY R 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SE FACTORY RS 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SM FACTORY R 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SM FACTORY RS 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SM RED ONE R 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SM RED ONE RS 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SM SILVER R 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SM SILVER RS 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• VALENTI N01 50 2T LC euro 5 2022-> (MINARELLI AM6)
• VALENTI RME ENDURO 50 2T LC euro 5 2022-> (MINARELLI AM6)
• VALENTI RME RACE 50 2T LC euro 5 2022-> (MINARELLI AM6)
• VALENTI S01 SCRAMBLER 50 2T LC euro 5 2022-> (MINARELLI AM6)
• VALENTI SM 50 2T LC euro 5 2022-> (MINARELLI AM6)
• VENT BAJA 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• VENT BAJA RR 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• VENT DERAPAGE 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• VENT DERAPAGE 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• VENT DERAPAGE RR 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• VENT DERAPAGE RR 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• YAMAHA DT 50 R 50 2T LC euro 2 (MINARELLI AM 6)
• YAMAHA DT 50 X 50 2T LC euro 2 (MINARELLI AM 6)
• YAMAHA TZR 50 2T LC (MINARELLI AM 6)
