Malossi ALUMIN-CYLINDER 65 CVF2 VESPA T5

CVF2 CYLINDER

TECHNICAL FEATURES

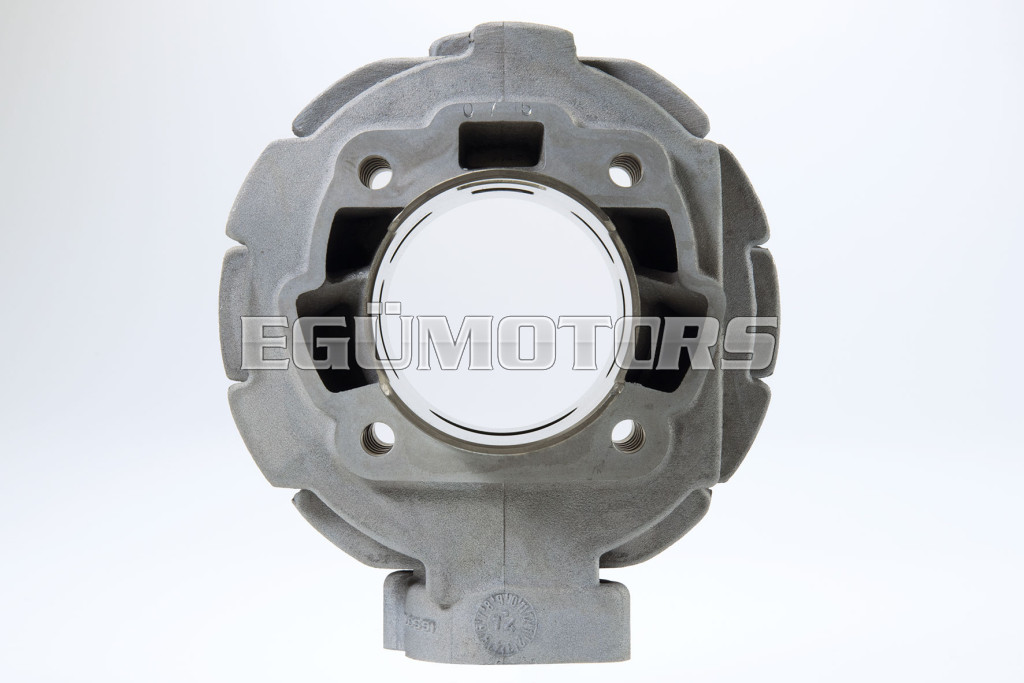

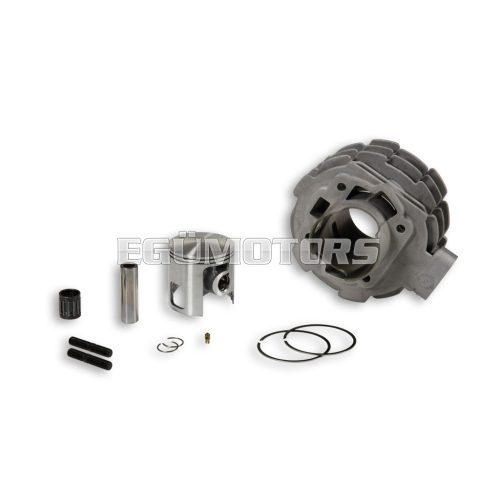

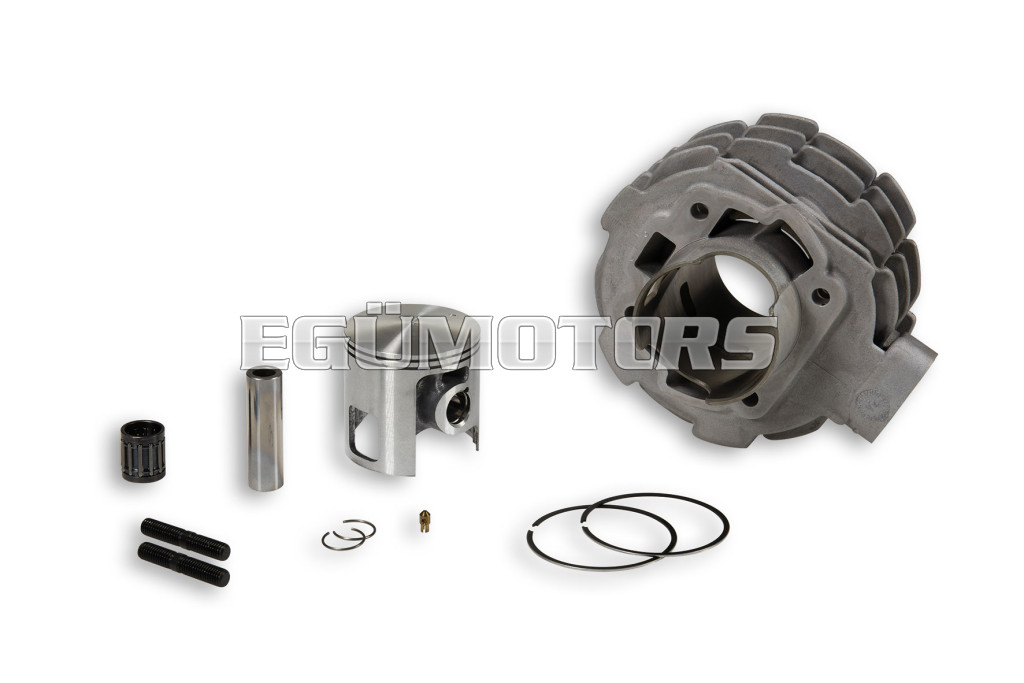

ALUMINIUM CYLINDER

• Cylinders obtained by gravity die-casting in permanent steel moulds.
• Material: hardened and tempered high silicon content primary aluminium alloy.
• Machining: on numerically controlled high precision machine tools.
• Cylinder liner with silicon carbide metal-spray coating on a galvanic nickel matrix, cross-honed with passes with diamonds for very tight tolerances.
• Recalculated and increased heat exchange surfaces.
• Exhaust and transfer ports designed and tested for maximum thermodynamic performance.
• Dimensional and surface finish quality control performed according to Malossi’s internal specifications.
• Cylinder and piston selected for a fit of 0.005 mm.





Modellek:

• VESPA T5 125 2T
