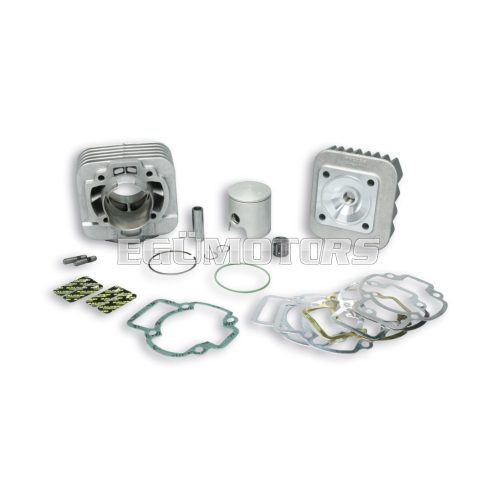

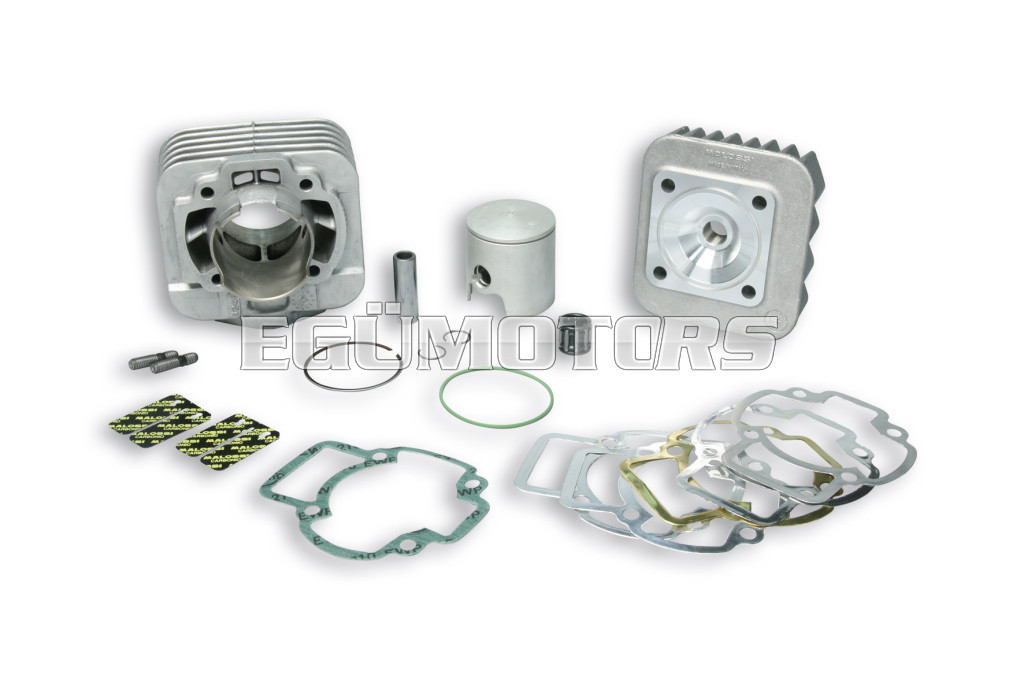

Malossi ALUMIN-CYLINDER KIT 47,6 pin 12 MHR

CYLINDER KIT MHR

TECHNICAL FEATURES

CYLINDER

• Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures.
• Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C.
• Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity).
• Inner surface coating: effected using silicon carbide on a nickel matrix with heat treatment that guarantees extreme hardness (around 600 HVO, 1/5) and excellent resistance to wear.
• Internal machining of cylinder: using special machines that allow a degree of finish on the cylinder barrel walls whose roughness corresponds with the angles set at the design stage (grinding process using special stone).
• Port and exhaust diagrams: designed and manufactured especially for racing. The definition of the port and exhaust diagrams has requested considerable effort on the part of our engineers both on engine test stands and the circuits on which the trophy is held.

PISTON

• Material: special aluminium alloy with a very high percentage of silicon and titanium that guarantees both excellent heat resistance and strain strength upon temperature variation.
• External coating: graphite coating that guarantees a very low friction coefficient
• Structure: reinforced in order to offer resistance to the stress suffered by cylinder units used for top-level competition, but at the same time light enough to reduce inertial force.
• Ring: 1 mm nodular-cast-iron single ring with rectangular cross section and hard-chromium coating on outer surface.

PISTON RINGS

• Rings in very strong modular cast iron with ground, wear-resistant, hard chrome metal-spray coating on the contact surface.

HEAD

• Material: special alluminium alloy with a very high heat exchange coefficient.
• Geometry of heat exchange surfaces recalculated and increased.
• Combustion chamber completely-designed to obtain a high compression ratio with a very high turbolece.
• Machining: numerically controlled machines.

Modellek:

• APRILIA MOJITO CUSTOM 50 2T
• APRILIA SCARABEO CLASSIC 50 2T euro 4 2018-> (CA91M)
• APRILIA SCARABEO STREET 50 2T (PIAGGIO)
• APRILIA SCARABEO STREET 50 2T euro 4 2018-> (CA91M)
• APRILIA SPORTCITY ONE STREET 50 2T euro 2
• APRILIA SR MOTARD 50 2T euro 2
• APRILIA SR MOTARD 50 2T euro 4 2018-> (CA41M)
• DERBI ATLANTIS - BULLET 50 2T 2003->
• DERBI VARIANT Sport 50 2T
• GILERA EASY MOVING 50 2T
• GILERA ICE 50 2T
• GILERA STORM 50 2T
• GILERA STALKER 50 2T
• GILERA TYPHOON 50 2T
• GILERA TYPHOON X 50 2T
• ITALJET JET SET 50 2T
• PIAGGIO DIESIS 50 2T
• PIAGGIO NRG EXTREME 50 2T
• PIAGGIO FLY 50 2T
• PIAGGIO FREE 50 2T
• PIAGGIO LIBERTY 50 2T
• PIAGGIO NRG MC3 DT 50 2T
• PIAGGIO NRG Power DT 50 2T (C453M)
• PIAGGIO SFERA RESTYLING 50 2T
• PIAGGIO SFERA 50 2T
• PIAGGIO TYPHOON 50 2T 2007->2010
• PIAGGIO TYPHOON 50 2T euro 2 2011->2017 (C421M)
• PIAGGIO TYPHOON 50 2T euro 4 2018-> (CA41M)
• PIAGGIO ZIP Fast Rider 50 2T
• PIAGGIO ZIP 50 2T 2000-> (C25EM)
• PIAGGIO ZIP 50 2T <-1999
• VESPA ET2 50 2T 2000->
• VESPA ET2 50 2T <-1999
• VESPA LX 50 2T
• VESPA Primavera 50 2T euro 2 (C533M)
• VESPA S 50 2T euro 2 (C381M)
• VESPA Sprint 50 2T euro 2
