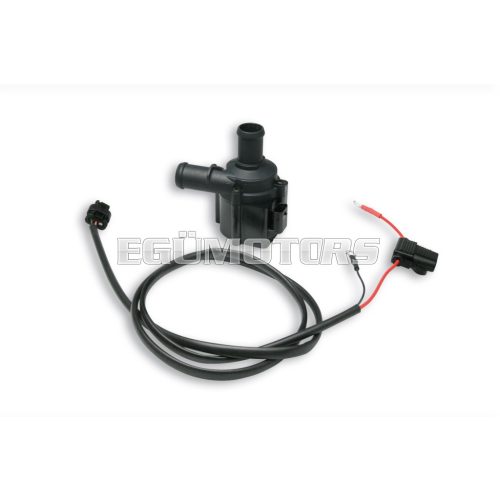

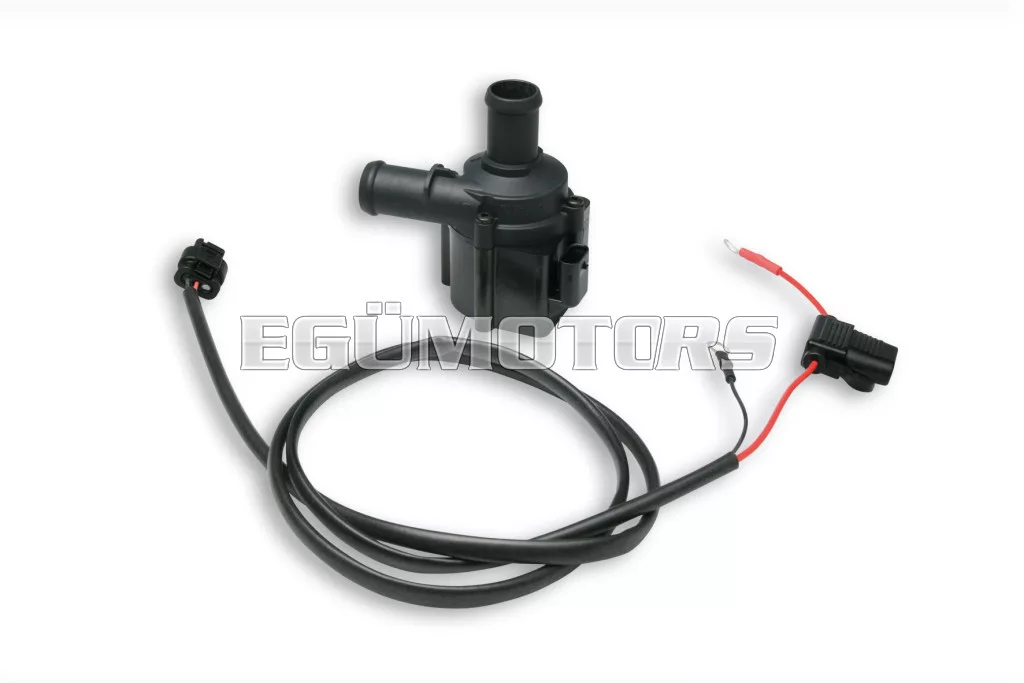

Malossi ENERGY PUMP

ENERGY PUMP is a water circulation pump for all liquid cooled, two and four stroke scooters and motorcycles equipped with a mechanical pump.

ENERGY PUMP can be installed as a replacement in all vehicles that use an electric pump, improving efficiency.

The new MALOSSI ENERGY PUMP eliminates fiction loss and mechanical failures, operates silently, is easy to install, and comes complete with fuses and wiring.

A new impeller and a more powerful electric motor have allowed an increase in power of 33% compared to the previous version. The electronic management of the internal pump has been improved so as to maintain a constant power supply range between 10.5 V and 14 V.

This smart pump is equipped with an electronic card, once interfaced with a dedicated electronic control unit, can more precisely control the coolant temperature within the specified values.

These characteristics raise the ENERGY PUMP to a superior level. It's potential and versatility makes this a coolant pump ahead of its time.

In an internal combustion engine, good coolant circulation is a guarantee for improved efficiency, performance and durability.



SPECIFICATIONS

The pump is enclosed in a rugged PPC, a light and unbreakable polymer, resistant to high temperatures, acids and fuels.It uses a 12V feeder supplied by the battery and has a robust electric motor with brushless excitation technology.

Traditional mechanical cooling pumps are normally driven by the crankshaft and follow the rpm of the engine. For this reason, they are not always able to supply the correct flow for proper cooling, e.g. low engine speeds and high loads.

ENERGY PUMP is equipped with an electronic card (electronic switching WCP) which, combined with a dedicated controller, allows you to adjust the flow rate to the cooling requirements of the engine, regardless of the conditions of the engine speed and of the applied loads.

This means that the engine always operates with optimal coolant temperatures.



	Units
Voltage Range	V	9 ÷ 15
Nominal Voltage	V	12
Pumping Capacity @ 100 mbar	L/h	1200
Current Consumption (12V, 100 mbar, 23°C)	A	1.6
Operating Temperature	°C	-40 ÷ 135
Nominal RPM (12V, 100 mbar, 23° C)	Rpm	3200
Protection Class		IP55

Modellek:

• APRILIA AF1 50 2T LC
• APRILIA AREA 51 50 2T LC
• APRILIA SR DITECH 50 2T LC (APRILIA)
• APRILIA ET FIRE 50 2T LC
• APRILIA GULLIVER 50 2T LC
• APRILIA MX 50 2T LC (MINARELLI AM 6)
• APRILIA SR NETSCAPER 50 2T LC (MINARELLI)
• APRILIA RALLY 50 2T LC (MINARELLI)
• APRILIA RS 50 2T LC (MINARELLI AM 3 > 6)
• APRILIA RS 50 2T LC euro 2 2006-> (DERBI D50B1)
• APRILIA RS 50 2T LC euro 4 2018-> (D50B0)
• APRILIA RS4 50 2T LC euro 2 (DERBI)
• APRILIA RX 50 2T LC 2007-> (DERBI D50B0)
• APRILIA RX FACTORY 50 2T LC euro 4 2018-> (D50B0)
• APRILIA SR RACING 50 2T LC (MINARELLI)
• APRILIA SONIC 50 2T LC
• APRILIA SR (carb.) 50 2T LC 2004-> (PIAGGIO)
• APRILIA SR R 50 2T LC euro 4 2018-> (PIAGGIO CA81M)
• APRILIA SR R FACTORY 50 2T LC (PIAGGIO C361M)
• APRILIA SR DITECH GP1 50 2T LC (PIAGGIO C361M)
• APRILIA SR REPLICA 50 2T LC 2000-> (APRILIA)
• APRILIA SR REPLICA 50 2T LC <-1999
• APRILIA SR R (carb.) 50 2T LC (PIAGGIO)
• APRILIA SR Street 50 2T LC euro 2
• APRILIA SR STEALTH 50 2T LC (MINARELLI)
• APRILIA SX 50 2T LC 2007-> (DERBI D50B0)
• APRILIA SX 50 2T LC euro 4 2018-> (D50B0)
• APRILIA SX FACTORY 50 2T LC euro 4 2018-> (D50B0)
• APRILIA TUAREG 50 2T LC
• APRILIA TUONO 50 2T LC (MINARELLI AM 6)
• ATALA HACKER 50 2T LC
• BENELLI 491 SPORT 50 2T LC (MINARELLI)
• BETA ARK 50 2T LC
• BETA EIKON 50 2T LC
• BETA RR ENDURO 50 2T LC (MINARELLI AM 6)
• BETA RR ENDURO RACING 50 2T LC (MINARELLI AM 6)
• BETA RR ENDURO 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• BETA RR ENDURO 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• BETA RR ENDURO RACING 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• BETA RR ENDURO RACING 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• BETA RR ENDURO SPORT 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• BETA RR ENDURO SPORT 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• BENELLI K2 50 2T LC
• BETA RR MOTARD 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• BETA RR MOTARD 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• BETA RR MOTARD SPORT 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• BETA RR MOTARD SPORT 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• BETA RR MOTARD TRACK 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• BETA RR MOTARD TRACK 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• BETA RR SUPERMOTARD 50 2T LC (MINARELLI AM 6)
• BETA RR SUPERMOTARD ALU 50 2T LC (MINARELLI AM 6)
• DERBI ATLANTIS 50 2T LC
• DERBI Senda DRD PRO R 50 2T LC (D50B0)
• DERBI Senda DRD PRO SM 50 2T LC (D50B0)
• DERBI Senda DRD RACING R - SM 50 2T LC (D50B0)
• DERBI Senda EVO SM 50 2T LC (D50B0)
• DERBI GPR NUDE 50 2T LC <-2005 (EBS050)
• DERBI GPR NUDE 50 2T LC 2006-> (D50B0)
• DERBI GPR RACING 50 2T LC <-2003 (EBE050 - EBS050)
• DERBI GPR RACING 50 2T LC 2004->2005 (EBS050)
• DERBI GPR RACING 50 2T LC 2006-> (D50B0)
• DERBI GP1 50 2T LC
• DERBI GP1 OPEN 50 2T LC
• DERBI GPR R 50 2T LC euro 2 2012->
• DERBI GP1 REVOLUTION 50 2T LC
• DERBI PADDOCK 50 2T LC
• DERBI PREDATOR 50 2T LC
• DERBI SENDA 50 2T LC (EBE050 - EBS050)
• DERBI Senda LIMITED SM 50 2T LC euro 4 2018-> (D50B0)
• DERBI Senda X-RACE R - X-RACE SM 50 2T LC (D50B0)
• DERBI Senda X-TREME R - X-TREME SM 50 2T LC (D50B0)
• DERBI Senda X-TREME SM 50 2T LC euro 4 2018-> (D50B0)
• FANTIC CABALLERO 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• FANTIC ENDURO CASA 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• FANTIC ENDURO XEF COMPETITION 50 2T LC euro 5 2021-> (MINARELLI AM6 95D)
• FANTIC ENDURO PERFORMANCE 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• FANTIC ENDURO XE PERFORMANCE 50 2T LC euro 5 2021-> (MINARELLI AM6 95D)
• FANTIC MOTARD CASA 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• FANTIC MOTARD XMF COMPETITION 50 2T LC euro 5 2021-> (MINARELLI AM6 95D)
• FANTIC MOTARD PERFORMANCE 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• FANTIC MOTARD XM PERFORMANCE 50 2T LC euro 5 2021-> (MINARELLI AM6 95D)
• GARELLI GSP 50 2T LC euro 2 (1PE40MB)
• GILERA DNA 50 2T LC
• GILERA DRIFTING 50 2T LC euro 4 2018-> (D50B0)
• GILERA GSM H@K 50 2T LC (DERBI EBE050)
• GILERA RCR - SMT 50 2T LC (DERBI D50B0)
• GILERA RCR 50 2T LC euro 4 2018-> (D50B0)
• GILERA RUNNER PureJet 50 2T LC <-2005
• GILERA RUNNER PureJet 50 2T LC 2006->
• GILERA RUNNER SP 50 2T LC <-2005
• GILERA RUNNER SP 50 2T LC 2006-> (C451M)
• GILERA RUNNER FX 125 2T LC
• GILERA RUNNER FXR - SP 180 2T LC
• GILERA RUNNER 50 2T LC
• GILERA RUNNER VXR 180 4T LC
• GILERA SMT 50 2T LC euro 4 2018-> (D50B0)
• HM CR E DERAPAGE 50 2T LC (MINARELLI AM 6)
• HM CRE SIX Comp. 50 2T LC 2013-> (MINARELLI AM 6)
• HM DERAPAGE RR 11 50 2T LC (MINARELLI AM 6)
• HONDA DIO Clean 4 You 50 4T LC
• HONDA MBX 50 LC
• HONDA MTX R 50 2T LC
• HONDA RUCKUS 50 4T LC
• HONDA ZOOMER 50 4T LC
• HUSQVARNA CH RACING 50 2T LC (MINARELLI AM 6)
• ITALJET DRAGSTER 50 2T LC
• ITALJET FORMULA 50 2T LC (F.MORINI)
• KEEWAY TX EN - SM 50 2T LC (KW1E40QMB-2 )
• KYMCO DINK 50 2T LC
• KYMCO SUPER 9 50 2T LC
• MALAGUTI FIFTY (3 gear) 50 LC (F.MORINI G30-303-304)
• MALAGUTI FIFTY TOP (4 gear) 50 LC (F.MORINI GSA)
• MALAGUTI F15 FIREFOX 50 2T LC
• MALAGUTI FIFTY 50 LC (F.MORINI GSA)
• MALAGUTI F12 DIGIT KAT-PHANTOM 50 2T LC
• MALAGUTI F12 DIGIT KAT-PHANTOM 50 2T LC euro 2
• MALAGUTI F12-PHANTOM 50 2T LC
• MALAGUTI MDX 50 LC (F.MORINI GSA)
• MALAGUTI MISTRAL 50 LC (F.MORINI G30-303-304)
• MALAGUTI F12 R LC 50 2T LC euro 2
• MALAGUTI RST (3-4 gear) 50 LC
• MALAGUTI XSM - XTM 50 2T LC (MINARELLI AM 6)
• MBK 51 V 50 (AV 10)
• MBK BOOSTER X 50 ie 4T LC euro 2
• MBK MACH G 50 2T LC
• MBK NITRO 50 2T LC
• MBK X-LIMIT 50 2T LC (MINARELLI AM 6)
• MBK X-POWER 50 2T LC (MINARELLI AM 6)
• MINI MOTO-POCKETBIKE MINI MOTO 50 2T LC (POLINI H2O)
• PIAGGIO NRG Power 50 2T LC euro 4 2018->2020 (CA71M)
• OVER B3 50 4T LC (LJ1P38MB)
• OVER THOR 50 2T LC 2013-> (LJ1PE40MB)
• PEUGEOT JET FORCE TSDI 50 2T LC (HL 1)
• PEUGEOT JET FORCE C-TECH 50 2T LC
• PEUGEOT LUDIX BLASTER 50 2T LC (HL 2)
• PEUGEOT 103 RCX 50
• PEUGEOT SPEEDFIGHT 2 50 2T LC 2004->
• PEUGEOT SPEEDFIGHT 3 50 2T LC
• PEUGEOT SPEEDFIGHT 50 2T LC
• PEUGEOT 103 -104 -105 50 2T
• PEUGEOT 103 SPX 50
• PEUGEOT X-FIGHT 2 50 2T LC 2004->
• PEUGEOT X-FIGHT 50 2T LC
• PEUGEOT XPS 50 2T LC (MINARELLI AM 6)
• PEUGEOT XR6 50 2T LC (MINARELLI AM 6)
• PEUGEOT XR7 50 2T LC (MINARELLI AM 6)
• PIAGGIO NRG EXTREME 50 2T LC
• PIAGGIO NRG MC2 50 2T LC <-1997
• PIAGGIO NRG MC2 50 2T LC 1998->
• PIAGGIO NRG MC3 Purejet 50 2T LC
• PIAGGIO NRG 50 2T LC
• PIAGGIO NRG MC3 DD 50 2T LC
• PIAGGIO NTT 50 2T LC
• PIAGGIO NRG Power DD 50 2T LC
• PIAGGIO NRG Power Purejet 50 2T LC
• PIAGGIO QUARTZ 50 2T LC
• PIAGGIO TYPHOON - Malossi PROTOTYPE 125 4T LC
• PIAGGIO ZIP SP 50 2T LC 2001->
• PIAGGIO ZIP SP 50 2T LC <-2000
• RIEJU RS2 50 2T LC (MINARELLI AM 6)
• DERBI Senda X-TREME R 50 2T LC euro 4 2018-> (D50B0)
• SHERCO HRD 50 2T LC (MINARELLI AM 6)
• SHERCO SE FACTORY R 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SE FACTORY RS 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SM FACTORY R 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SM FACTORY RS 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SM RED ONE R 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SM RED ONE RS 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SM SILVER R 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• SHERCO SM SILVER RS 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• DERBI Senda RACING SM 50 2T LC euro 4 2018-> (D50B0)
• SUZUKI KATANA 50 2T LC
• SUZUKI ZILLION 50 2T LC
• VALENTI N01 50 2T LC euro 5 2022-> (MINARELLI AM6)
• VALENTI RME ENDURO 50 2T LC euro 5 2022-> (MINARELLI AM6)
• VALENTI RME RACE 50 2T LC euro 5 2022-> (MINARELLI AM6)
• VALENTI S01 SCRAMBLER 50 2T LC euro 5 2022-> (MINARELLI AM6)
• VALENTI SM 50 2T LC euro 5 2022-> (MINARELLI AM6)
• VENT BAJA 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• VENT BAJA RR 50 2T LC euro 4 2019-> (MINARELLI AM 6)
• VENT DERAPAGE 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• VENT DERAPAGE 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• VENT DERAPAGE RR 50 2T LC euro 4 2019->2020 (MINARELLI AM 6)
• VENT DERAPAGE RR 50 2T LC euro 5 2021-> (MINARELLI AM 6)
• YAMAHA AEROX 50 2T LC euro 0-1
• YAMAHA AEROX 50 2T LC euro 2
• YAMAHA DT 50 R 50 2T LC euro 2 (MINARELLI AM 6)
• YAMAHA DT 50 X 50 2T LC euro 2 (MINARELLI AM 6)
• YAMAHA JOGRR 50 2T LC euro 2
• YAMAHA TZR 50 2T LC (MINARELLI AM 6)
• PEUGEOT 103 SP 50 2T LC
• PEUGEOT VOGUE 50 2T
