Alkatrész részletes leírása

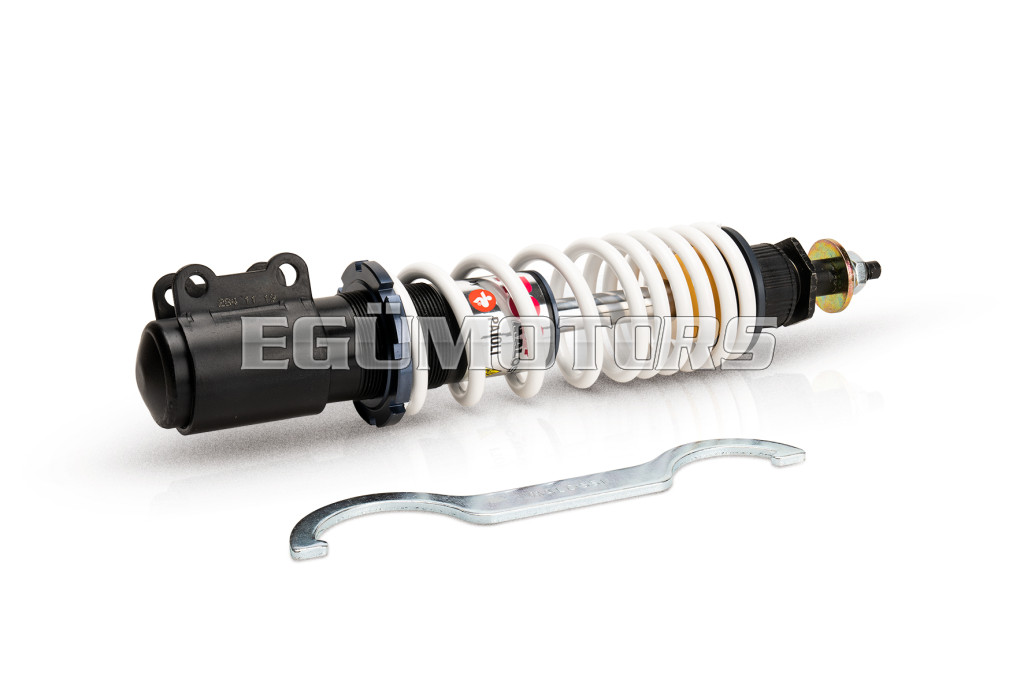

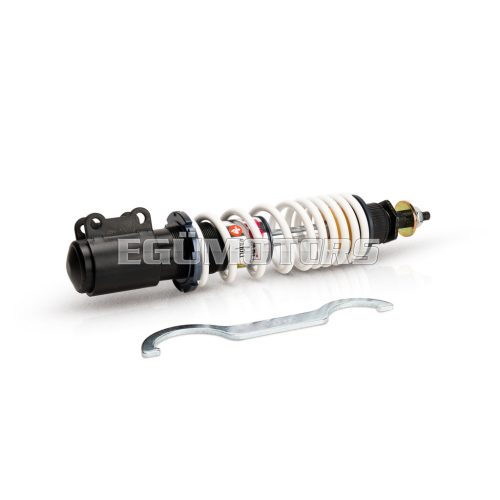

It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation.
- Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration.
- LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound).
- Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB).
- Polyester resin SEALTHANE grade 9345 scraper ring.
- 38NCD4 alloy steel shock absorber rod ø 14 mm, hardened and tempered with hard chrome deposit thickness 25/30 microns (superficial hardness of the untreated shaft HRC 55/60).
|
Code |
|
Inter-axis mm |
Stroke mm |
|
46 7588 |
rear |
267 |
42 |
|
46 7900 |
front |
205 |
60 |
|
46 8308 |
rear |
294 |
65 |
|
4611641 |
rear |
410 |
85 |
|
4612962 |
rear |
290 |
54 |
|
4613055 |
rear |
307 |
60 |
|
4613598 |
rear |
316 |
45 |
|
4614615 |
front |
257 |
90 |
4615218 |
rear |
336 |
86 |
4620074 |
rear |
336 |
86 |
4617065 |
rear |
360 |
70 |
4617076 |
front |
275 |
58 |
|
4617558 |
front |
227 |
75 |
|
4619983 |
front |
225 |
60 |
Modellek:
- VESPA SEI GIORNI 300 ie 4T LC euro 4 2018->
- VESPA 946 3V ABS 125 ie 4T 2013-> (M801M)
- VESPA ELETTRICA 45 KM/H 2019-> (CB01E)
- VESPA Granturismo L - GT 125 4T LC (LEADER)
- VESPA GTV 125 4T LC (LEADER)
- VESPA Granturismo L - GT 200 4T LC (M312M)
- VESPA GTS 125 4T LC euro 3 <-2013 (M315M)
- VESPA GTS Super 125 ie 4T LC euro 3 <-2013 (M455M)
- VESPA GTS Super 125 ie 4T LC euro 4 2017->2020
- VESPA GTS Super 125 ie 4T LC euro 5 2021->2022
- VESPA GTS Super 150 ie 4T LC euro 4 2017->2020
- VESPA GTS 250 ie 4T LC
- VESPA GTV 250 ie 4T LC
- VESPA GTS Super 300 ie 4T LC euro 3 <-2013 (QUASAR M454M)
- VESPA GTS Super 300 ie 4T LC euro 4 2017->2018 (QUASAR M458M-M45EM)
- VESPA GTS Super RACING SIXTIES HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
- VESPA GTS Super HPE 300 ie 4T LC euro 4 2019->2020 (MA36M)
- VESPA GTS Super HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
- VESPA GTS Super Sport HPE 300 ie 4T LC euro 4 2019->2020 (MA36M)
- VESPA GTS Super Sport HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
- VESPA GTS Super Tech HPE 300 ie 4T LC euro 4 2019->2020 (MA36M)
- VESPA GTS Super Tech HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
- VESPA GTS Touring HPE 300 ie 4T LC euro 4 2019->2020 (MA36M)
- VESPA GTS Touring HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
- VESPA GTS 125 ie 4T LC euro 4 2017->2020
- VESPA GTS 125 ie 4T LC euro 5 2021->2022
- VESPA GTS 150 ie 4T LC euro 4 2017->2020
- VESPA GTS 300 ie 4T LC euro 4 2017->2018 (MA33M)
- VESPA GTV 300 ie 4T LC euro 3 (QUASAR)
- VESPA SEI GIORNI HPE 300 ie 4T LC euro 4 2019->2020 (MA36M)
- VESPA SEI GIORNI HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
- VESPA SEI GIORNI II EDITION HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
- VESPA GTS HPE 300 ie 4T LC euro 4 2019->2020 (MA36M)
- VESPA GTS HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
- VESPA Primavera iGet 125 ie 4T euro 4 2016->2020
- VESPA Primavera iGet 125 ie 4T euro 5 2021->2023 (MD11M)
- VESPA Primavera iGet 150 ie 4T euro 4 2016->2020
- VESPA Primavera iGet 150 ie 4T euro 5 2021->2023 (MD12M)
- VESPA Primavera 3V iGet 50 ie 4T euro 4 2018->2020 (CA03M)
- VESPA Primavera 3V iGet 50 ie 4T euro 5 2021->2023 (CD01M)
- VESPA SPRINT 3V IGet 50 ie 4T euro 4 2018->2020 (CA01M)
- VESPA SPRINT 3V IGet 50 ie 4T euro 5 2021->2023 (CD01M)
- VESPA Sprint iGet 125 ie 4T euro 4 2016->2020 (MA13M)
- VESPA Sprint iGet 125 ie 4T euro 5 2021->2023 (MD11M)
- VESPA Sprint iGet 150 ie 4T euro 4 2016->2020
- VESPA Sprint iGet 150 ie 4T euro 5 2021->2023
- VESPA Primavera iGet 125 ie 4T euro 5+ 2024-> (MD13M)
- VESPA GTV HPE 300 ie 4T LC euro 5 2023->
- VESPA Sprint S iGet 125 ie 4T euro 5+ 2024->
- VESPA Primavera iGet 150 ie 4T euro 5+ 2024-> (MD14M)
- VESPA Sprint S 3V Iget 50 ie 4T euro 5 2024->
- VESPA Primavera 3V Iget 50 ie 4T euro 5 2024->
- VESPA Primavera S 3V Iget 50 ie 4T euro 5 2024->
- VESPA Primavera Tech 3V Iget 50 ie 4T euro 5 2024->
- VESPA Primavera S iGet 150 ie 4T euro 5+ 2025->
- VESPA Primavera RED iGet 150 ie 4T euro 5+ 2025->
- VESPA Primavera Tech iGet 150 ie 4T euro 5+ 2025->
- VESPA Primavera Batik iGet 150 ie 4T euro 5+ 2025->
- VESPA Primavera S iGet 125 ie 4T euro 5+ 2025->
- VESPA Primavera RED iGet 125 ie 4T euro 5+ 2025->
- VESPA Primavera Tech iGet 125 ie 4T euro 5+ 2025->
- VESPA Primavera Batik iGet 125 ie 4T euro 5+ 2025->
Alkatrész adatai
Az alkatrész szállítása raktárról
1 - 3 munkanap
Szállítás előrendelés esetén
7 - 9 munkanap
Gyártó
Malossi
Gyártói cikkszám
4617558
Malossi útmutató, pdf
Cikkszám
MM4617558
