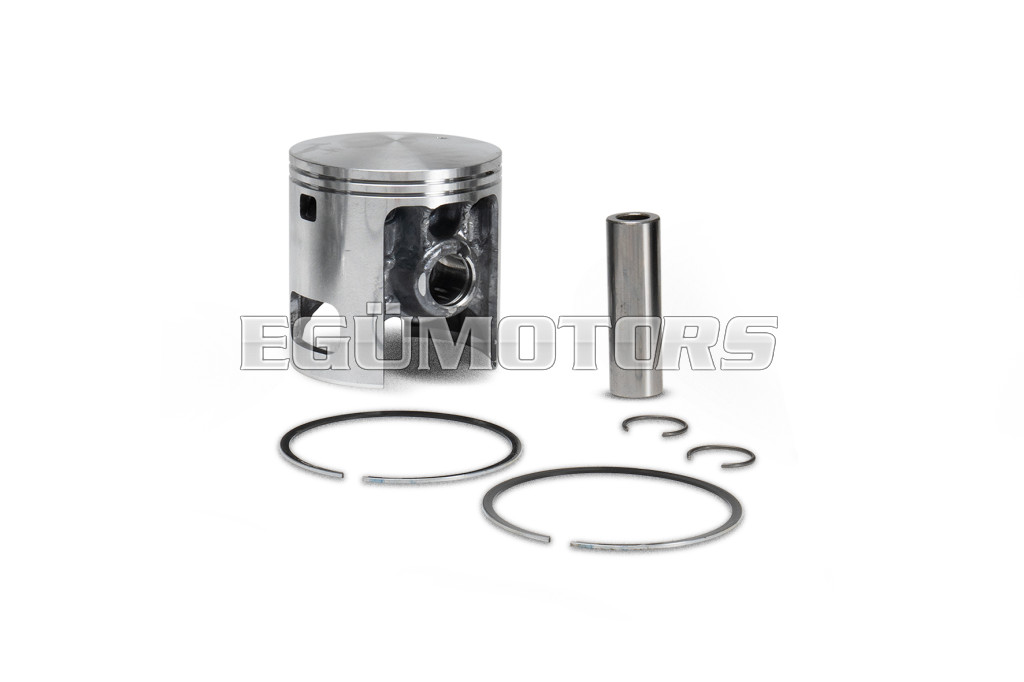

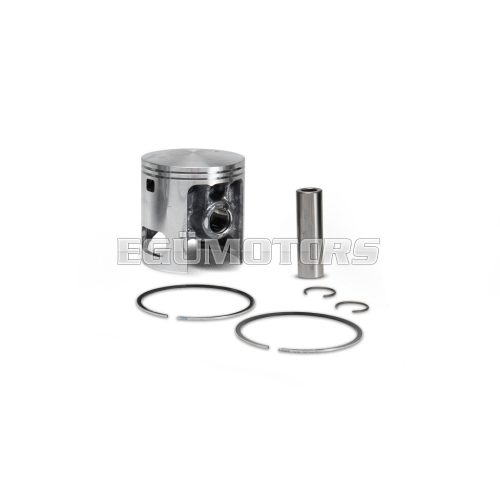

Malossi PISTON 61,4 pin 15 semi. rings 2

All Malossi cylinders - both cast-iron and aluminum - are selected by size.

The range goes from size 0 (smallest piston) to size D (biggest piston). Every size features an increase of 0.01 mm.



When ordering a piston, please carefully specify the requested size marking as follows:

Example

• 34 3448          corresponds to size 0
• 34 3448.A0     corresponds to size A
• 34 3448.B0     corresponds to size B
• 34 3448.C0     corresponds to size C
• 34 3448.D0     corresponds to size D



Only cast-iron cylinders are also available in oversize as follows:

• 34 3448.40     corresponds to an increase of 0.4 mm
• 34 3448.80     corresponds to an increase of 0.8 mm

For pistons produced in the past, 0.2 mm and 0.6 mm oversizes are also available (ex. 34 3448.20 - 34 4375.60).

All Malossi cylinders are selected by size and bear size marking, week number and year.

All Malossi pistons bear the own size marking (number or letter).

Piston must be put into cylinder with the arrow drawn on the piston crown facing the exhaust.

Modellek:

• LML STAR 125 2T (Spare part for Malossi CYLINDER KIT 3117181 : out of production)
• LML STAR 150 2T (Spare part for Malossi CYLINDER KIT 3117181 : out of production)
• VESPA COSA 125 2T (Spare part for Malossi CYLINDER KIT 3117181 : out of production)
• VESPA COSA 150 2T (Spare part for Malossi CYLINDER KIT 3117181 : out of production)
• VESPA PX 125 2T euro 0-1 (Spare part for Malossi CYLINDER KIT 3117181 : out of production)
• VESPA PX 125 2T euro 2 (VLX2M) (Spare part for Malossi CYLINDER KIT 3117181 : out of production)
• VESPA PX 125 2T euro 3 (Spare part for Malossi CYLINDER KIT 3117181 : out of production)
• VESPA PX 150 2T euro 0-1 (Spare part for Malossi CYLINDER KIT 3117181 : out of production)
• VESPA PX 150 2T euro 2 (VLX2M) (Spare part for Malossi CYLINDER KIT 3117181 : out of production)
• VESPA PX 150 2T euro 3 (Spare part for Malossi CYLINDER KIT 3117181 : out of production)
