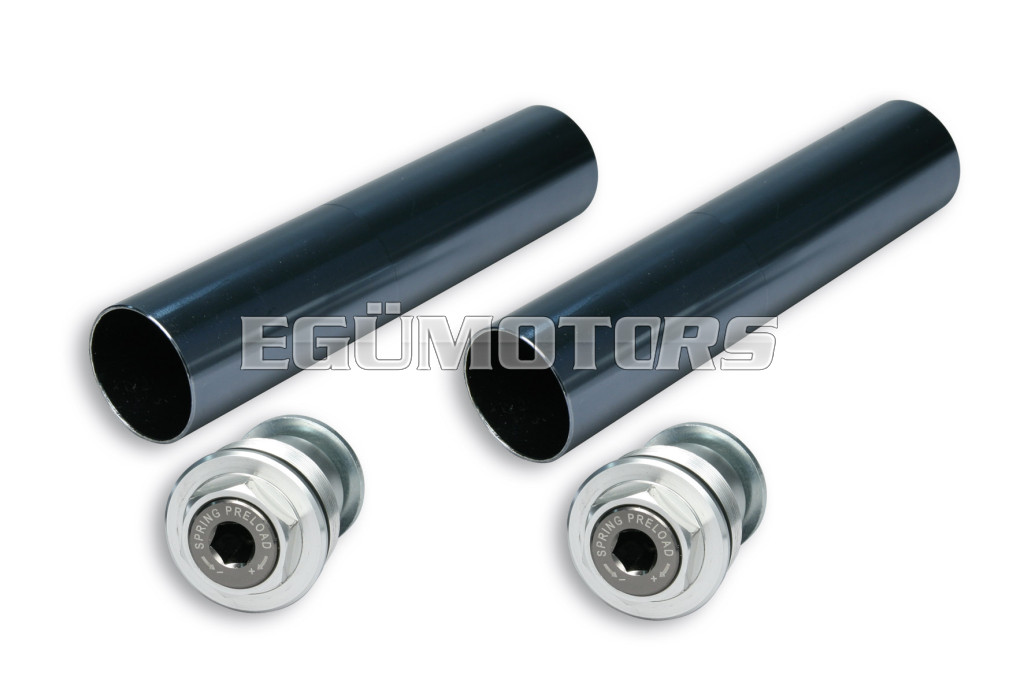

Malossi SPRING PRE-LOAD REGULATION KIT for ORIGINAL FORK

Fine adjustment kit of the spring preload for original fork

Adjustment range: from -5 to +25 mm

Thanks to this new Malossi kit you can adjust the spring preload of your fork, thus varying its compression with endless possible adjustments from a minimum of -5 mm to a maximum of +25 mm!

• -5 mm: allows to release the spring in comparison with the original preload
• +25 mm: allows to preload the spring in comparison with the original preload



Technical features

• Extremely light, completely made of 6000 series aluminium alloy (with magnesium and silicon)
• Range of the preload adjustment plug: -5 / +25 mm
• Laser engraving on the plug with hard oxide coating for an even easier adjustment
• Tube made of 6000 series aluminium alloy (with magnesium and silicon), extremely light, with blue cobalt anodic oxidation

Installation is very easy: just unscrew the original plugs and remove the relevant original spacer, then insert the new spacer tube and new adjustment plug.



Attention: in case you use a higher preload +5 mm, we suggest you to replace oil with SAE20 fork oil.

Modellek:

• YAMAHA T MAX 500 ie 4T LC 2008->2011
• YAMAHA T MAX 530 ie 4T LC 2012->2014 (J409E)
