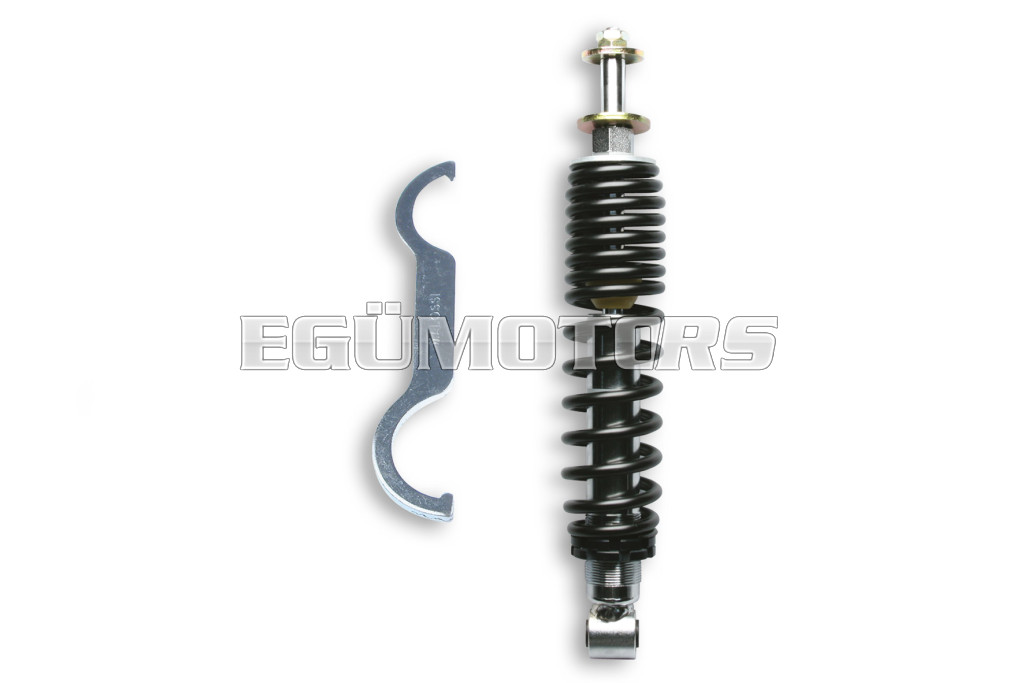

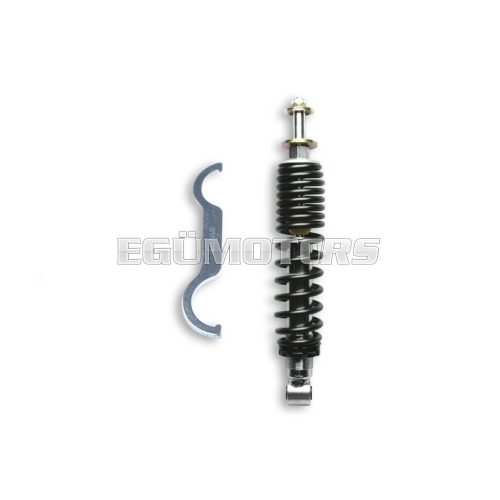

Malossi TWINS REAR shock absorber - wheelbase 290 mm

TWINS MAXI SUSPENSIONS

COMFORT & SAFETY

Technical data

• Type: oil-pneumatic
• Use: road
• Shock absorber rod d. 12mm in C43 steel-hardened and tempered
• Piston in steel and sintered bronze
• New laminar system in Swedish steel
• LUBRIFLON-PTFE B70 piston guide shoe (bronze-loaded modified compound)
• Sliding on DU GUIDE bush (compound obtained by sinterization of a layer of spheroidal bronze on a strap of suitably shaped lowcarbon steel with subsequent impregnation and coating with a PTFE + FB mixture)
• SEALTHANE 9345 grade polyester resin scraper ring
• Regulation of spring preloading by means of ring nut with 4 positions
• Special low-viscosity oil, pratically unaffected by temperature changes



Modellek:

• PIAGGIO LIBERTY iGet 125 ie 4T euro 5 2021->2024 (MD41M)
• PIAGGIO LIBERTY 125 4T euro 3 (LEADER M389M)
• PIAGGIO LIBERTY 3V 125 ie 4T euro 3
• PIAGGIO LIBERTY iGet ABS 125 ie 4T euro 3 (M893M)
• PIAGGIO LIBERTY iGet 125 ie 4T euro 4 2017->2020
• PIAGGIO LIBERTY S 125 4T euro 3 (LEADER M381M)
• PIAGGIO LIBERTY S iGet 125 ie 4T euro 5 2021->2024 (MD41M)
• PIAGGIO LIBERTY 150 4T euro 3 2009->2013 (LEADER M672M)
• PIAGGIO LIBERTY 3V 150 ie 4T euro 3 (M738M)
• PIAGGIO LIBERTY iGet ABS 150 ie 4T euro 3
• PIAGGIO LIBERTY iGet 150 ie 4T euro 4 2017->2020
• PIAGGIO LIBERTY iGet 150 ie 4T euro 5 2021->2024 (MD42M)
• PIAGGIO LIBERTY S iGet 125 ie 4T euro 4 2017->2020
• PIAGGIO LIBERTY S iGet 150 ie 4T euro 4 2017->2020
• PIAGGIO LIBERTY - LIBERTY LE 125 4T euro 1-2 (LEADER)
• PIAGGIO LIBERTY - LIBERTY LE 150 4T euro 1-2 (LEADER)
• PIAGGIO LIBERTY - LIBERTY S 200 4T euro 3 (LEADER)
• VESPA LX 125 4T euro 2 2006->2007 (LEADER M441M)
• VESPA LX 3V 125 ie 4T euro 3 2012-> (M687M)
• VESPA LX 125 ie 4T euro 3 2007->2011 (LEADER M443M)
• VESPA LX 150 4T (LEADER)
• VESPA LX 3V 150 ie 4T euro 3 2012-> (M688M)
• VESPA LX 150 ie 4T euro 3 (LEADER)
• VESPA LXV 125 ie 4T euro 3 (LEADER)
• PIAGGIO LIBERTY S iGet 125 ie 4T euro 5+ 2025-> (MD43M)
• PIAGGIO LIBERTY iGet 125 ie 4T euro 5+ 2025-> (MD43M)
