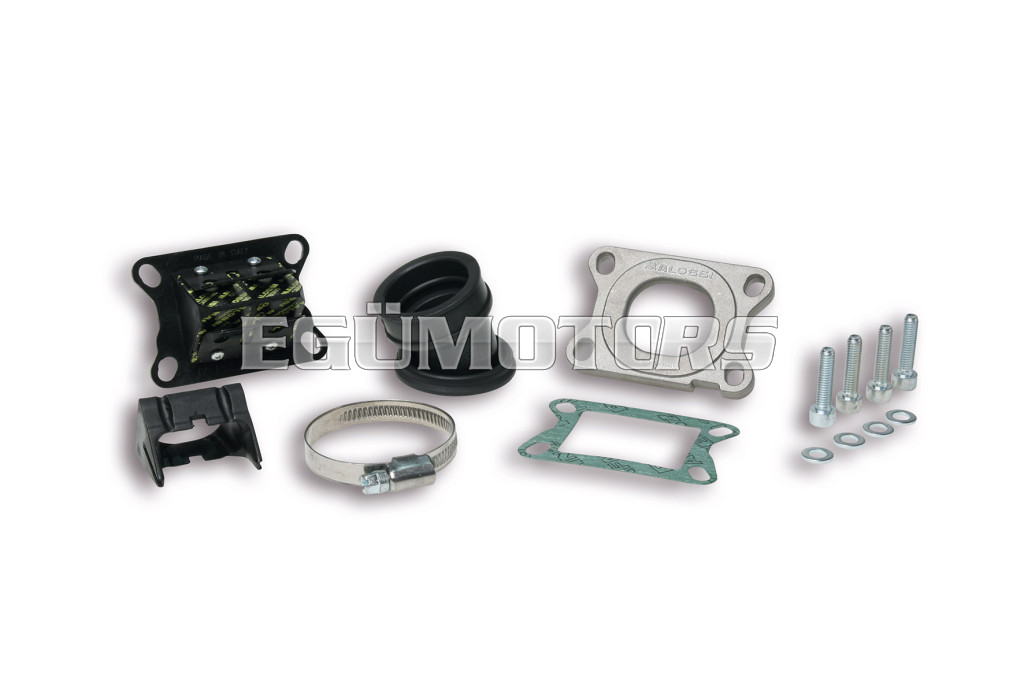

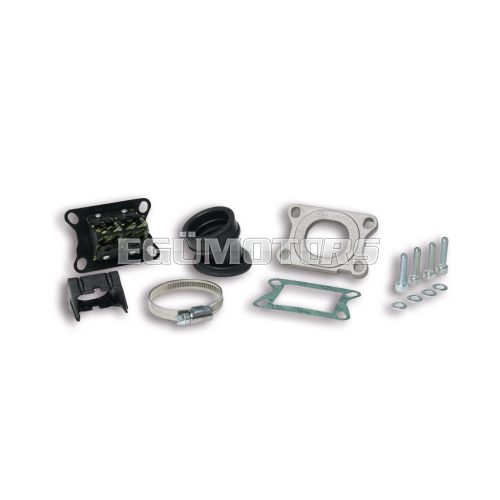

Malossi X360 FKM INCLINED INT.MANIF. KIT 28-35 L.27 (DERBI-MINARELLI)

These new intake manifolds are supplied split up: the intake rubber can be rotated into the flange according to the specific requirements of the vehicle, in order to locate which is the best angle for the carburettor assembly.





for DERBI-MINARELLI ENGINES	Material	Inter-axis (mm)	Inter-axis (hole)	Ø Manifolds	Ø Inlet	Total length	Carburettors applications	Note
2013800	VITON	60/61 x 35/40	6,5	21	24,5	27	PHBG 15-21	Can be rotated of 360°
2013801	VITON	60/61 x 35/40	6,5	28	35	27	PHBH 26-30 VHST 26-30	Can be rotated of 360°



Modellek:

• APRILIA MX 50 2T LC (MINARELLI AM 6) (Can be rotated of 360°)
• APRILIA RS 50 2T LC (MINARELLI AM 3 > 6) (Can be rotated of 360°)
• APRILIA RS 50 2T LC euro 2 2006-> (DERBI D50B1) (Can be rotated of 360°)
• APRILIA RS 50 2T LC euro 4 2018-> (D50B0) (Can be rotated of 360°)
• APRILIA RS4 50 2T LC euro 2 (DERBI) (Can be rotated of 360°)
• APRILIA RX 50 2T LC 2007-> (DERBI D50B0) (Can be rotated of 360°)
• APRILIA RX FACTORY 50 2T LC euro 4 2018-> (D50B0) (Can be rotated of 360°)
• APRILIA SX 50 2T LC 2007-> (DERBI D50B0) (Can be rotated of 360°)
• APRILIA SX 50 2T LC euro 4 2018-> (D50B0) (Can be rotated of 360°)
• APRILIA SX FACTORY 50 2T LC euro 4 2018-> (D50B0) (Can be rotated of 360°)
• APRILIA TUONO 50 2T LC (MINARELLI AM 6) (Can be rotated of 360°)
• BETA RR ENDURO 50 2T LC (MINARELLI AM 6) (Can be rotated of 360°)
• BETA RR ENDURO RACING 50 2T LC (MINARELLI AM 6) (Can be rotated of 360°)
• BETA RR ENDURO 50 2T LC euro 4 2019->2020 (MINARELLI AM 6) (Can be rotated of 360°)
• BETA RR ENDURO 50 2T LC euro 5 2021-> (MINARELLI AM 6) (Can be rotated of 360°)
• BETA RR ENDURO RACING 50 2T LC euro 4 2019->2020 (MINARELLI AM 6) (Can be rotated of 360°)
• BETA RR ENDURO RACING 50 2T LC euro 5 2021-> (MINARELLI AM 6) (Can be rotated of 360°)
• BETA RR ENDURO SPORT 50 2T LC euro 4 2019->2020 (MINARELLI AM 6) (Can be rotated of 360°)
• BETA RR ENDURO SPORT 50 2T LC euro 5 2021-> (MINARELLI AM 6) (Can be rotated of 360°)
• BETA RR MOTARD 50 2T LC euro 4 2019->2020 (MINARELLI AM 6) (Can be rotated of 360°)
• BETA RR MOTARD 50 2T LC euro 5 2021-> (MINARELLI AM 6) (Can be rotated of 360°)
• BETA RR MOTARD SPORT 50 2T LC euro 4 2019->2020 (MINARELLI AM 6) (Can be rotated of 360°)
• BETA RR MOTARD SPORT 50 2T LC euro 5 2021-> (MINARELLI AM 6) (Can be rotated of 360°)
• BETA RR MOTARD TRACK 50 2T LC euro 4 2019->2020 (MINARELLI AM 6) (Can be rotated of 360°)
• BETA RR MOTARD TRACK 50 2T LC euro 5 2021-> (MINARELLI AM 6) (Can be rotated of 360°)
• BETA RR SUPERMOTARD 50 2T LC (MINARELLI AM 6) (Can be rotated of 360°)
• BETA RR SUPERMOTARD ALU 50 2T LC (MINARELLI AM 6) (Can be rotated of 360°)
• DERBI Senda DRD PRO R 50 2T LC (D50B0) (Can be rotated of 360°)
• DERBI Senda DRD PRO SM 50 2T LC (D50B0) (Can be rotated of 360°)
• DERBI Senda DRD RACING R - SM 50 2T LC (D50B0) (Can be rotated of 360°)
• DERBI Senda EVO SM 50 2T LC (D50B0) (Can be rotated of 360°)
• DERBI GPR NUDE 50 2T LC <-2005 (EBS050) (Can be rotated of 360°)
• DERBI GPR NUDE 50 2T LC 2006-> (D50B0) (Can be rotated of 360°)
• DERBI GPR RACING 50 2T LC <-2003 (EBE050 - EBS050) (Can be rotated of 360°)
• DERBI GPR RACING 50 2T LC 2004->2005 (EBS050) (Can be rotated of 360°)
• DERBI GPR RACING 50 2T LC 2006-> (D50B0) (Can be rotated of 360°)
• DERBI GPR R 50 2T LC euro 2 2012-> (Can be rotated of 360°)
• DERBI SENDA 50 2T LC (EBE050 - EBS050) (Can be rotated of 360°)
• DERBI Senda LIMITED SM 50 2T LC euro 4 2018-> (D50B0) (Can be rotated of 360°)
• DERBI Senda X-RACE R - X-RACE SM 50 2T LC (D50B0) (Can be rotated of 360°)
• DERBI Senda X-TREME R - X-TREME SM 50 2T LC (D50B0) (Can be rotated of 360°)
• DERBI Senda X-TREME SM 50 2T LC euro 4 2018-> (D50B0) (Can be rotated of 360°)
• FANTIC CABALLERO 50 2T LC euro 4 2019-> (MINARELLI AM 6) (Can be rotated of 360°)
• FANTIC ENDURO CASA 50 2T LC euro 4 2019-> (MINARELLI AM 6) (Can be rotated of 360°)
• FANTIC ENDURO XEF COMPETITION 50 2T LC euro 5 2021-> (MINARELLI AM6 95D) (Can be rotated of 360°)
• FANTIC ENDURO PERFORMANCE 50 2T LC euro 4 2019-> (MINARELLI AM 6) (Can be rotated of 360°)
• FANTIC ENDURO XE PERFORMANCE 50 2T LC euro 5 2021-> (MINARELLI AM6 95D) (Can be rotated of 360°)
• FANTIC MOTARD CASA 50 2T LC euro 4 2019-> (MINARELLI AM 6) (Can be rotated of 360°)
• FANTIC MOTARD XMF COMPETITION 50 2T LC euro 5 2021-> (MINARELLI AM6 95D) (Can be rotated of 360°)
• FANTIC MOTARD PERFORMANCE 50 2T LC euro 4 2019-> (MINARELLI AM 6) (Can be rotated of 360°)
• FANTIC MOTARD XM PERFORMANCE 50 2T LC euro 5 2021-> (MINARELLI AM6 95D) (Can be rotated of 360°)
• GILERA DRIFTING 50 2T LC euro 4 2018-> (D50B0) (Can be rotated of 360°)
• GILERA GSM H@K 50 2T LC (DERBI EBE050) (Can be rotated of 360°)
• GILERA RCR - SMT 50 2T LC (DERBI D50B0) (Can be rotated of 360°)
• GILERA RCR 50 2T LC euro 4 2018-> (D50B0) (Can be rotated of 360°)
• GILERA SMT 50 2T LC euro 4 2018-> (D50B0) (Can be rotated of 360°)
• HM CR E DERAPAGE 50 2T LC (MINARELLI AM 6) (Can be rotated of 360°)
• HM CRE SIX Comp. 50 2T LC 2013-> (MINARELLI AM 6) (Can be rotated of 360°)
• HM DERAPAGE RR 11 50 2T LC (MINARELLI AM 6) (Can be rotated of 360°)
• HUSQVARNA CH RACING 50 2T LC (MINARELLI AM 6) (Can be rotated of 360°)
• KEEWAY TX EN - SM 50 2T LC (KW1E40QMB-2 ) (Can be rotated of 360°)
• MALAGUTI XSM - XTM 50 2T LC (MINARELLI AM 6) (Can be rotated of 360°)
• MBK X-LIMIT 50 2T LC (MINARELLI AM 6) (Can be rotated of 360°)
• MBK X-POWER 50 2T LC (MINARELLI AM 6) (Can be rotated of 360°)
• PEUGEOT XPS 50 2T LC (MINARELLI AM 6) (Can be rotated of 360°)
• PEUGEOT XR6 50 2T LC (MINARELLI AM 6) (Can be rotated of 360°)
• PEUGEOT XR7 50 2T LC (MINARELLI AM 6) (Can be rotated of 360°)
• RIEJU RS2 50 2T LC (MINARELLI AM 6) (Can be rotated of 360°)
• DERBI Senda X-TREME R 50 2T LC euro 4 2018-> (D50B0) (Can be rotated of 360°)
• SHERCO HRD 50 2T LC (MINARELLI AM 6) (Can be rotated of 360°)
• SHERCO SE FACTORY R 50 2T LC euro 5 2021-> (MINARELLI AM 6) (Can be rotated of 360°)
• SHERCO SE FACTORY RS 50 2T LC euro 5 2021-> (MINARELLI AM 6) (Can be rotated of 360°)
• SHERCO SM FACTORY R 50 2T LC euro 5 2021-> (MINARELLI AM 6) (Can be rotated of 360°)
• SHERCO SM FACTORY RS 50 2T LC euro 5 2021-> (MINARELLI AM 6) (Can be rotated of 360°)
• SHERCO SM RED ONE R 50 2T LC euro 5 2021-> (MINARELLI AM 6) (Can be rotated of 360°)
• SHERCO SM RED ONE RS 50 2T LC euro 5 2021-> (MINARELLI AM 6) (Can be rotated of 360°)
• SHERCO SM SILVER R 50 2T LC euro 5 2021-> (MINARELLI AM 6) (Can be rotated of 360°)
• SHERCO SM SILVER RS 50 2T LC euro 5 2021-> (MINARELLI AM 6) (Can be rotated of 360°)
• DERBI Senda RACING SM 50 2T LC euro 4 2018-> (D50B0) (Can be rotated of 360°)
• VALENTI N01 50 2T LC euro 5 2022-> (MINARELLI AM6) (Can be rotated of 360°)
• VALENTI RME ENDURO 50 2T LC euro 5 2022-> (MINARELLI AM6) (Can be rotated of 360°)
• VALENTI RME RACE 50 2T LC euro 5 2022-> (MINARELLI AM6) (Can be rotated of 360°)
• VALENTI S01 SCRAMBLER 50 2T LC euro 5 2022-> (MINARELLI AM6) (Can be rotated of 360°)
• VALENTI SM 50 2T LC euro 5 2022-> (MINARELLI AM6) (Can be rotated of 360°)
• VENT BAJA 50 2T LC euro 4 2019-> (MINARELLI AM 6) (Can be rotated of 360°)
• VENT BAJA RR 50 2T LC euro 4 2019-> (MINARELLI AM 6) (Can be rotated of 360°)
• VENT DERAPAGE 50 2T LC euro 4 2019->2020 (MINARELLI AM 6) (Can be rotated of 360°)
• VENT DERAPAGE 50 2T LC euro 5 2021-> (MINARELLI AM 6) (Can be rotated of 360°)
• VENT DERAPAGE RR 50 2T LC euro 4 2019->2020 (MINARELLI AM 6) (Can be rotated of 360°)
• VENT DERAPAGE RR 50 2T LC euro 5 2021-> (MINARELLI AM 6) (Can be rotated of 360°)
• YAMAHA DT 50 R 50 2T LC euro 2 (MINARELLI AM 6) (Can be rotated of 360°)
• YAMAHA DT 50 X 50 2T LC euro 2 (MINARELLI AM 6) (Can be rotated of 360°)
• YAMAHA TZR 50 2T LC (MINARELLI AM 6) (Can be rotated of 360°)
