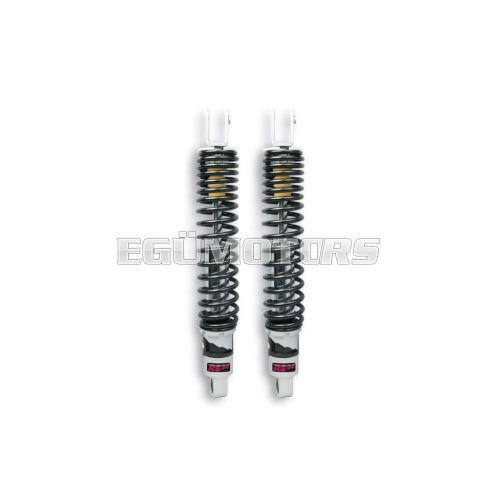

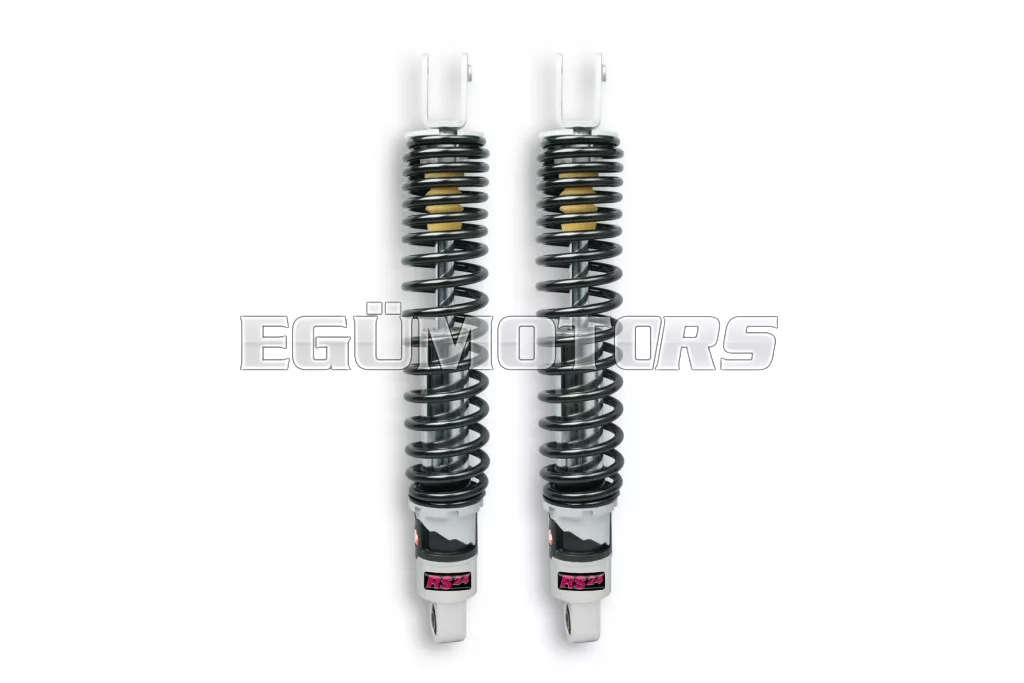

Malossi TWINS REAR pair shock absorber - wheelbase 345 mm

TWINS MAXI SUSPENSIONS

COMFORT & SAFETY

Technical data

• Type: oil-pneumatic
• Use: road
• Shock absorber rod d. 12mm in C43 steel-hardened and tempered
• Piston in steel and sintered bronze
• New laminar system in Swedish steel
• LUBRIFLON-PTFE B70 piston guide shoe (bronze-loaded modified compound)
• Sliding on DU GUIDE bush (compound obtained by sinterization of a layer of spheroidal bronze on a strap of suitably shaped lowcarbon steel with subsequent impregnation and coating with a PTFE + FB mixture)
• SEALTHANE 9345 grade polyester resin scraper ring
• Regulation of spring preloading by means of ring nut with 4 positions
• Special low-viscosity oil, pratically unaffected by temperature changes



Modellek:

• KYMCO AGILITY R16 + 125 ie 4T euro 4 <-2020 (KL25F)
• KYMCO AGILITY R16 + 125 ie 4T euro 5 2021-> (KL25H)
• MBK SKYCRUISER 125 ie 4T LC euro 3
• MBK SKYLINER 125 4T LC
• MBK SKYLINER 150 4T LC
• MBK SKYLINER 250 4T LC
• YAMAHA MAJESTY 125 4T LC
• YAMAHA MAJESTY 150 4T LC
• YAMAHA MAJESTY 180 4T LC
• YAMAHA MAJESTY 250 4T LC
• YAMAHA N MAX 125 ie 4T LC euro 3 <-2016 (E3S3E)
• YAMAHA N MAX 125 ie 4T LC euro 4 2017->2020 (E3X7E)
• YAMAHA N MAX 155 ie 4T LC euro 4 2017->
• YAMAHA TRICITY 125 ie 4T LC euro 3 <-2016
• YAMAHA TRICITY 125 ie 4T LC euro 4 2017-> (E3V8E)
• YAMAHA X CITY 125 ie 4T LC euro 3 (E3A5E)
• YAMAHA X MAX 125 ie 4T LC euro 3 <-2008
• YAMAHA X MAX 125 ie 4T LC euro 3 2014->2016 (E3M1E)
• YAMAHA X MAX 125 ie 4T LC euro 4 2017 (E3V9E)
• YAMAHA X MAX 125 ie 4T LC euro 4 2018->2020 (E31LE)
• YAMAHA X MAX 125 ie 4T LC euro 5 2021->2022 (E33FE)
• YAMAHA X MAX 125 ie 4T LC euro 3 2009->2013
• YAMAHA X MAX 250 ie 4T LC euro 3 2010->2013 (G389E)
• YAMAHA X MAX 250 ie 4T LC euro 3 2008->2009 (G362E)
• YAMAHA X MAX 250 4T LC
• KYMCO DINK 150 Flat ie 4T LC euro 5 2023-> (TG30C)
• KYMCO DINK R 150 TUNNEL ie 4T LC euro 5 2023-> (TG30C)
• KYMCO AGILITY S 125 ie 4T euro 5 2022-> (TC25B)
• SYM SYMPHONY ST 125 ie 4T LC euro 5 2021-> (XS1P52MI-5)
• SYM JET 14 125 ie 4T LC euro 5 2021-> (XS1P52MI-5)
• YAMAHA X MAX 125 ie 4T LC euro 5 2023->2024
