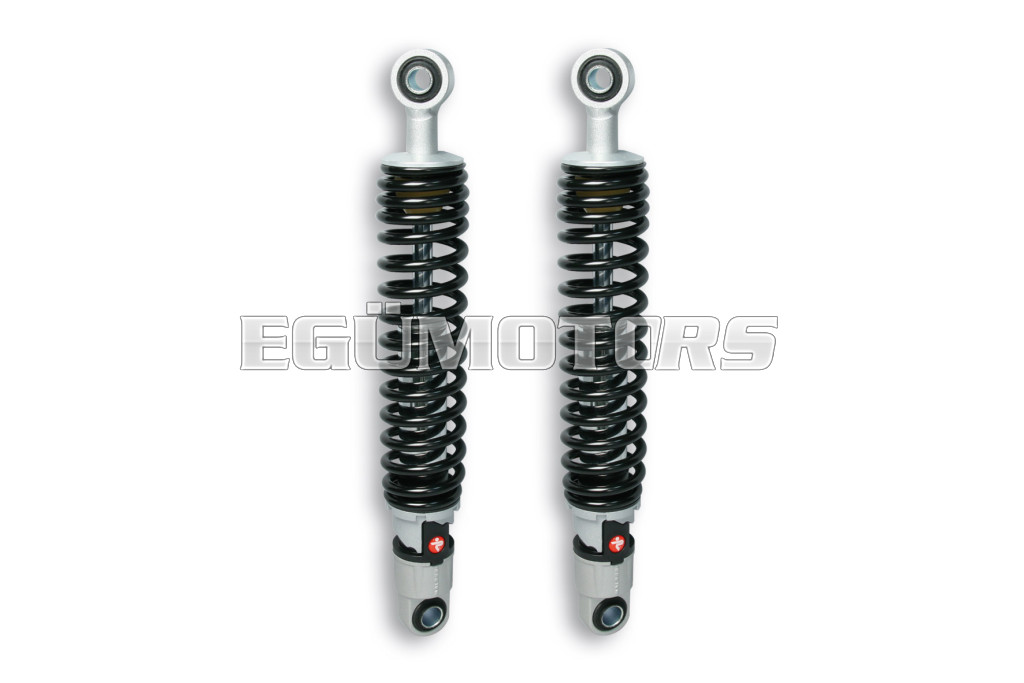

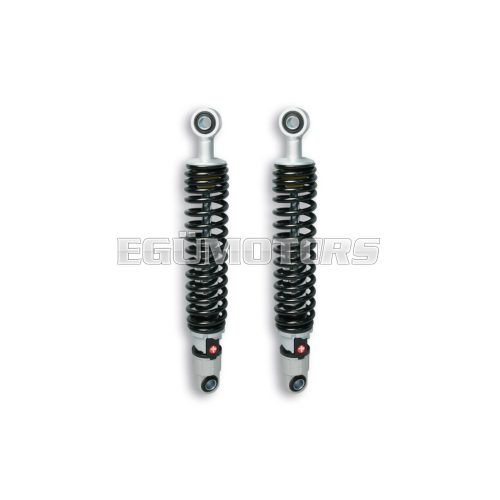

Malossi TWINS REAR pair shock absorber - wheelbase 345 mm

TWINS MAXI SUSPENSIONS

COMFORT & SAFETY

Technical data

• Type: oil-pneumatic
• Use: road
• Shock absorber rod d. 12mm in C43 steel-hardened and tempered
• Piston in steel and sintered bronze
• New laminar system in Swedish steel
• LUBRIFLON-PTFE B70 piston guide shoe (bronze-loaded modified compound)
• Sliding on DU GUIDE bush (compound obtained by sinterization of a layer of spheroidal bronze on a strap of suitably shaped lowcarbon steel with subsequent impregnation and coating with a PTFE + FB mixture)
• SEALTHANE 9345 grade polyester resin scraper ring
• Regulation of spring preloading by means of ring nut with 4 positions
• Special low-viscosity oil, pratically unaffected by temperature changes



Modellek:

• APRILIA SCARABEO Special 300 ie 4T LC euro 3 (PIAGGIO M28RM)
• APRILIA SPORTCITY 125 4T LC euro 2 (PIAGGIO M281M)
• APRILIA SPORTCITY 200 4T LC euro 3 (PIAGGIO)
• APRILIA SPORTCITY 250 ie 4T LC euro 3 (PIAGGIO M288M)
• APRILIA SPORTCITY CUBE 300 ie 4T LC euro 3 (LEADER M28LM)
• DERBI RAMBLA 125 4T LC euro 3 (PIAGGIO M287M)
• DERBI RAMBLA 250 ie 4T LC euro 3
• DERBI RAMBLA i 300 ie 4T LC euro 3 (PIAGGIO)
• PIAGGIO BEVERLY 125 4T LC <-2009
• PIAGGIO BEVERLY 125 ie 4T LC euro 3 2010->2015 (QUASAR M691M)
• PIAGGIO BEVERLY 200 4T LC
• PIAGGIO BEVERLY 250 4T LC euro 1-2 (M285M)
• PIAGGIO BEVERLY S 250 ie 4T LC euro 3
• PIAGGIO BEVERLY 300 ie 4T LC euro 3 <-2009 (M28MM)
• PIAGGIO BEVERLY 300 ie 4T LC euro 3 2010->2016 (M692M)
• PIAGGIO BEVERLY 300 ie 4T LC euro 4 2017->2020 (MA21M)
• PIAGGIO BEVERLY TOURER 300 ie 4T LC euro 3
• PIAGGIO BEVERLY 250 ie 4T LC euro 3
• PIAGGIO CARNABY 125 4T LC euro 3 (LEADER M28FM)
• PIAGGIO CARNABY 200 4T LC euro 3 (LEADER M601M)
• PIAGGIO CARNABY 300 ie 4T LC euro 3 (QUASAR)
