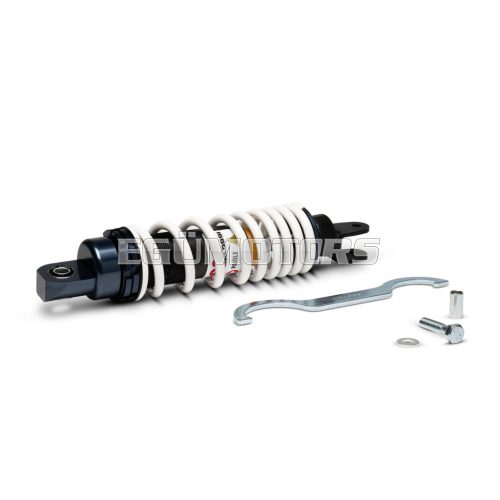

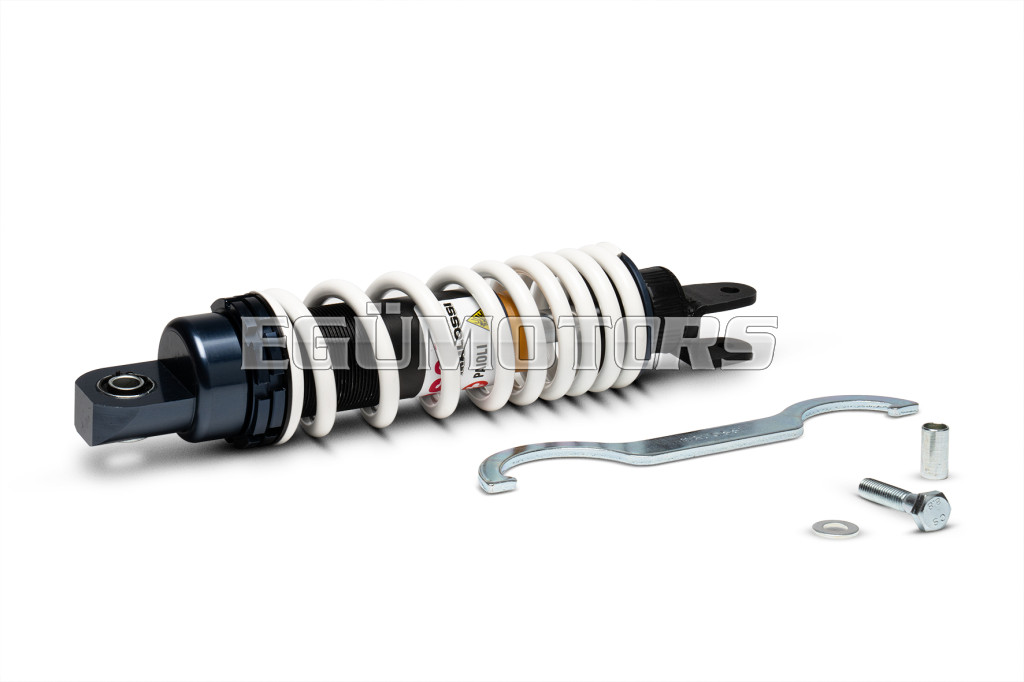

Malossi REAR SHOCK ABSORBER RS24 - wheelbase 267 mm

It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation.

• Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration.
• LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound).
• Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB).
• Polyester resin SEALTHANE grade 9345 scraper ring.
• 38NCD4 alloy steel shock absorber rod ø 14 mm, hardened and tempered with hard chrome deposit thickness 25/30 microns (superficial hardness of the untreated shaft HRC 55/60).



Modellek:

• APRILIA AMICO 50 2T
• ATALA HACKER 50 2T
• ATALA CAROSELLO 50 2T (20 mm longer wheelbase)
• ATALA HACKER 50 2T LC
• BETA CHRONO 50 2T (20 mm longer wheelbase)
• BENELLI PEPE 50 2T (20 mm longer wheelbase)
• BETA TEMPO 50 2T (20 mm longer wheelbase)
• BSV AX 50 (20 mm longer wheelbase)
• BSV DIO GP 50 (AF18E) (ALSO for MHR)
• BSV GZ 50 (20 mm longer wheelbase)
• BSV DIO SP 50 (AF18E)
• BSV DIO SR 50 (AF18E)
• BSV DIO ZX 50 <-1993 (AF18E)
• FANTIC BIG WHEEL 50 2T (20 mm longer wheelbase)
• GARELLI FLEXI' 50 4T euro 2 (1P139 QMB)
• GARELLI PONY 50 2T (20 mm longer wheelbase)
• GARELLI SR 50 2T (20 mm longer wheelbase)
• HONDA AERO NB 50 2T 1987
• HONDA DIO G 50 2T (AF18E)
• HONDA SFX 50 2T
• HONDA DIO SP 50 2T (AF18E)
• HONDA DIO SR 50 2T (AF18E)
• HONDA SXR 50 2T
• HONDA VISION 50 2T
• HONDA VISION MET IN 50 2T
• HONDA DIO ZX 50 2T <-1993 (AF18E)
• HSC SC 01 L 50 (AF18E)
• HSC SC 01 50 (AF18E)
• ITALJET BAZOOKA 50 2T (20 mm longer wheelbase)
• ITALJET FORMULA 50 2T (F.MORINI)
• ITALJET FORMULA 50 2T LC (F.MORINI)
• ITALJET PISTA 2 50 2T (20 mm longer wheelbase)
• ITALJET REPORTER 50 (20 mm longer wheelbase)
• ITALJET TORPEDO 50 2T
• ITALJET VELOCIFERO 50 2T
• ITALJET YANKEE 50 2T (20 mm longer wheelbase)
• KEEWAY F-ACT 50 2T
• KEEWAY HURRICANE 50 2T euro 2 (KW1E40QMB)
• KEEWAY MATRIX 50 2T (KW1E40QMB-4)
• KEEWAY PIXEL 50 2T euro 2 (KW1E40QMB ) (20 mm longer wheelbase)
• KYMCO DJ X 50 2T
• LEM FLASH 50 (20 mm longer wheelbase)
• LEM GHIBLI 50 (20 mm longer wheelbase)
• LEM TORNADO 50 (20 mm longer wheelbase)
• MALAGUTI F10 50 2T (20 mm longer wheelbase)
• MALAGUTI F10 WAP 50 2T euro 2 (QJ*CMA03C*) (20 mm longer wheelbase)
• MALAGUTI F12-PHANTOM 50 2T
• MALAGUTI CENTRO 50 2T (20 mm longer wheelbase)
• MALAGUTI F12 DIGIT KAT-PHANTOM 50 2T LC
• MALAGUTI F12 DIGIT KAT-PHANTOM 50 2T LC euro 2
• MALAGUTI F12-PHANTOM 50 2T LC
• MALAGUTI F12 R LC 50 2T LC euro 2
• MALAGUTI YESTERDAY 50 2T (20 mm longer wheelbase)
• MBK ACTIVE 50 (20 mm longer wheelbase)
• MBK BOOSTER 50 2T euro 0-1 (20 mm longer wheelbase)
• MBK BOOSTER 50 2T euro 2 (A137E)
• MBK BOOSTER SPIRIT 50 2T euro 0-1 (20 mm longer wheelbase)
• MBK EVOLIS 50 2T (20 mm longer wheelbase)
• MBK FIZZ 50 2T (20 mm longer wheelbase)
• MBK FORTE 50 2T (20 mm longer wheelbase)
• MBK HOT CHAMP 50 2T (20 mm longer wheelbase)
• MBK BOOSTER NAKED 50 2T euro 2 (A137E)
• MBK BOOSTER NG 50 2T euro 0-1 (20 mm longer wheelbase)
• MBK BOOSTER NG 50 2T euro 2 (A137E)
• MBK BOOSTER ROCKET 50 2T euro 0-1 (20 mm longer wheelbase)
• MBK BOOSTER ROCKET 50 2T euro 2 (A137E)
• MBK SORRISO 50 2T 1996-> (20 mm longer wheelbase)
• MBK SORRISO 50 2T <-1995 (20 mm longer wheelbase)
• MBK STUNT 50 2T euro 2
• MBK TARGET 50 2T (20 mm longer wheelbase)
• OVER B3 50 4T LC (LJ1P38MB)
• PEUGEOT METAL-X 50 2T
• PEUGEOT X-FIGHT 50 2T LC
• PEUGEOT ZENITH 50 2T (20 mm longer wheelbase)
• PGO BIG MAX 50
• RIZZATO VAMOS 50
• SUZUKI ADDRESS AH 50 2T
• SUZUKI AP 50 2T
• SUZUKI SEPIA 50 2T
• SUZUKI SEPIA ZZ 50 2T
• YAMAHA AXIS 50 2T (20 mm longer wheelbase)
• YAMAHA BELUGA 50 (20 mm longer wheelbase)
• YAMAHA BREEZE 50 2T (20 mm longer wheelbase)
• YAMAHA BW'S 50 2T euro 0-1 (20 mm longer wheelbase)
• YAMAHA BW'S 50 2T euro 2 (A137E)
• YAMAHA BW'S Original/Naked 50 2T euro 2 2010-> (A137E)
• YAMAHA BW'S NG 50 2T euro 0-1 (20 mm longer wheelbase)
• YAMAHA BW'S NG 50 2T euro 2 (A137E)
• YAMAHA CRZ 50 2T (20 mm longer wheelbase)
• YAMAHA CT 50 2T (20 mm longer wheelbase)
• YAMAHA JOG ER 50 2T (20 mm longer wheelbase)
• YAMAHA JOG 50 2T (20 mm longer wheelbase)
• YAMAHA JOG Z 50 2T (20 mm longer wheelbase)
• YAMAHA SPY 50 2T (20 mm longer wheelbase)
• YAMAHA ZEST 50 2T (20 mm longer wheelbase)
• YAMAHA ZUMA 50 2T (20 mm longer wheelbase)
• TNT MOTOR CANCUN 50 4T euro 5 2023-> (LJ139QMB-2) (20 mm longer wheelbase)
